MTBF

3000000 hours

Typ

USB Flash Drive

Marknad

Enterprise

Kapacitet

32 GB

NAND-typ

SLC

Garanti

5 Years

DRAM-cache

DRAM-less

Gränssnitt

USB 2.0

Läshastighet

35 MB/s

Formfaktor

USB EDC Horizontal

Skrivhastighet

35 MB/s

Övriga specifikationer

Shock

[email protected]

Capacity

4GB ~ 32GB

Warranty

5 Years

P/E Cycle

60,000

Vibration

20G@[7 ~ 2000Hz]

Model Name

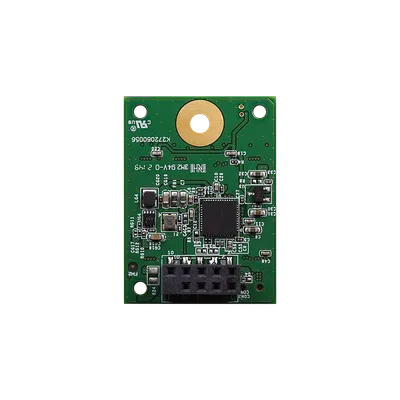

USB EDC Horizontal 2SE3

Description

USB EDC Horizontal 2SE3 is designed as USB 2.0 interface and SLC Flash with capacity up to 32GB. It supports ECC engine and wear leveling technology.

Max. Channels

1

Storage Temperature

-40°C ~ 85°C

Operating Temperature

Standard Grade (0°C ~ 70°C) Industrial Grade (-40°C ~ 85°C)

Max. Power Consumption

0.4W

Dimension (W x L x H/mm)

Pin Pitch 2.00mm : 26.6 x 36.9 x 6.75 Pin Pitch 2.54mm: 26.6 x 36.9 x 9.85
