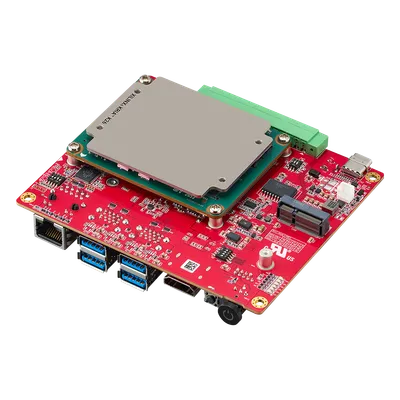

EXMU-X261 EXMU-X261 FPGA Machine Vision Solution Kit / Wide Temperature

Name: EXMU-X261 EXMU-X261 FPGA Machine Vision Solution Kit / Wide Temperature
Brand: Innodisk

Art.nr: EXMU-X261-00A1-W1

Specifikationer

Produktsida

Övriga specifikationer

I/O: 4 x USB 3.1 Gen 1 1 x 15-pin Terminal Block (5 x GPIO, 1 x UART, 2 x CAN Bus, 1 x I2C) 1 x MicroSD 1 x USB Type-C (Debug Only) 1 x Power Button 1 x Reset Button
Shock: 30G, IEC 60068-2-27, half sine, 11ms duration
Memory: 4GB LPDDR4 on SOM
Storage: 16GB eMMC on SOM ; MicroSD ; NVME SSD (M.2 2242 M Key PCIe Gen 3 x2)
Ethernet: 1 x RJ45 GbE LAN
Warranty: 3 Years
Expansion: M.2 2230 E Key (PCIe Gen 2 x1, USB 2.0) M.2 2242 M Key (PCIe Gen 3 x4)
Indicator: Green Color Power LED
Vibration: 3G, IEC 60068-2-64, random vibration, 5 ~ 500Hz, 1hr/axis
Controller: Kria K26 SOM
OS Support: Linux (Kernel 5.15.19)

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

FPGAs revolutionize computing tasks with unparalleled versatility, low latency, energy efficiency, and long-term availability, emerging as the ideal AI solution for industrial applications.

Form Factor

SOM and Carrier Board

Module Name

EXMU-X261

Module Type

FPGA Machine Vision Solution Kit

Temperature

Operation : S/T 0°C ~ 70°C (Ta)；W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)

Certification

CE / FCC class A

Storage Humidity

5% to 95%, non-condensing

Display Interface

1 x HDMI 1.4

Power Consumption

Approximately 17.64W (12V, 1.47A)

Power Requirement

12V +/-5% DC Power supply

Dimensions (W x L x H/mm)

120 x 100 x 30.37 (with K26)
