EXEC-Q911

Övriga specifikationer

CPU

Qualcomm Dragonwing IQ-9075 SoC (Octa-core Kyro Gen 6 : 8x Kryo Gold Prime @2.36GHz)

ESD

EN61000-4-2, Air-15kV, Contact-8kV

MIPI

MIPI CSI-2：2 x 4-lane MIPI CSI-2 (22pin, P : 0.5, on module)

Note

* Indicates that the specifications differ from the EVT-stage design.

Audio

MIC In / LINE Out：Phone Jack 3.5mm AMP Out：Wafer (1 x 4)

Shock

Operating：30G, IEC 60068-2-27, Half Sine, 11ms Duration

Memory

36GB LPDDR5X

Display

DP1.2：2 eDP：1

Storage

128GB UFS 3.1

Ethernet

LAN：2 x 2.5GbE RJ45

Graphics

Adreno 663 GPU

Humidity

Operating & Storage : 5% to 95%, Non-condensing

Security

TPM2.0

AI Engine

100 TOPS (Dense) / 200 TOPS (Sparse) via 2 x NPU Hexagon Tensor Processor

Expansion

M.2 2280 M Key：1 x PCIe Gen 4 x4 M.2 3052 B Key：USB 3.2 Gen 2, USB2.0* M.2 2230 E Key：1 x PCIe Gen 4 x2 , USB 2.0

Vibration

Operating：3G, IEC 60068-2-64, Random Vibration, 5 ~ 500Hz, 1hr/axis

OS Support

Yocto Linux (Kernel 6.6); Ubuntu 24.04 (Kernel 6.8)

Weight (g)

• Net Weight (g)：1704 • Gross Weight (g)：TBD

Description

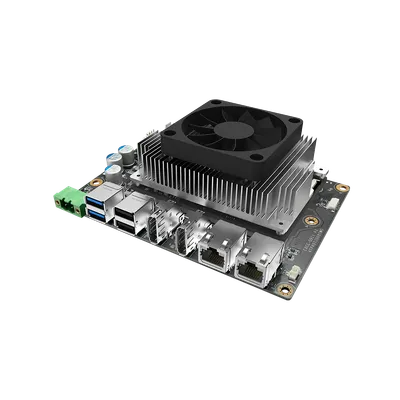

Innodisk leverages this innovation to develop the EXEC-Q911 starter kit, integrating a COM-HPC Mini Module and carrier board to deliver ready-to-use, high-performance, reliable, and scalable on-device AI computing with low power consumption at the edge.

Module Name

EXEC-Q911

Temperature

• Operating : -40°C ~ 85°C (Ta) • Storage : -40°C ~ 95°C (Ta)

External I/O

• USB 3.2 Gen 2 x1 (10Gbps)：3 • USB 3.2 Gen 2 x1 (10Gbps) Type-C：1 (OTG support)* • USB 2.0：2 • Buttons：1 x Power, 1 x Reset • Power Connector：Pluggable Terminal Block, P: 5.08mm, female, 2pin

Internal I/O

• Debug Port (UART)：1 (1 x 3, P : 2.54, 3.3V) • EDL Jumper：1 (1 x 3, P : 2.0) • CPU Fan Connector：1 (1 x 4, P : 2.54, for PWM Contorl, 12V) • eDP：1 (40pin, P : 0.5) • eDP Power Jumper：1 (2 x 3, P : 2.0) • GMSL Power：1 (1 x 4, P: 2.0, 12V 3A) • GPIO：8 (1 x 10, P : 1.0, 0.5A VCC, GND) • SPI：1 (1 x General SPI on 12-pin header, P:2.0, 3.3V)* • I2C：2 (1 x I2C on module, P:1.0, 3.3V ; 1 x I2C on 12-pin header, P:2.0)* • CAN FD：1 (1 x 3, P : 2.0) • COM：2 (1 x 9 P : 1.0, on module, 1 x 9 P : 1.0, on carrier board, RS232 / 422 / 485)* • USB 2.0：1(1 x 8, P : 1.0)* • Boot Mode Select：1 (Toggle Switch, 4 Poles)* • Sim Slot：Nano SIM (4FF)*

Certification

CE / FCC Class B

Other Features

• Watchdog Timer: Programmable watchdog to protect the system from crashes • Fan Supply : PWM Speed Control for CPU Fan on Carrier Board • System Monitoring : CPU Temperature, CPU Fan, Module Voltage, Current

Power Requirement

Power Input Voltage：DC 9-36V ([email protected]) RTC Battery：CR2302 Coin Cell

Module Form Factor

COM-HPC Mini

Dimensions (W x L x H/mm)

146 x 102 x 56.99 mm
