Övriga specifikationer

Notes

1. RAID Mode Setting : [J1 : J2] RAID0_2 : 2, RAID1_1 : 2, PM_1 : 1 2. Press tact switch SW1 for reset.

Shock

[email protected]

Function

Disk Array

Warranty

3 Years

Input I/F

SATA III

Vibration

5G@[7~2000Hz]

Model Name

E2SS-32R2

OS Support

--

Output I/F

SATA III

Description

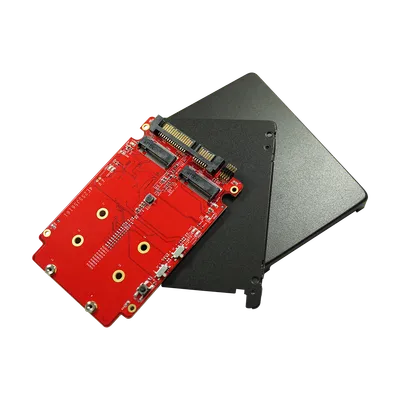

E2SS-32R2 is a SATA to dual SATA III Port Multiplier module with support for H/W RAID 0/1, providing flexible and reliable storage solutions.

Form Factor

2.5" SSD

Module Type

2.5” to Dual M.2 RAID Module

Output Port

2

Temperature

Operation : S/T 0° ~ 70°C (Ta) Storage : -55°C ~ 95°C (Ta)

Output Connector

M.2 B Key 2242 / M.2 B Key 2260 / M.2 B Key 2280

Max. Power Consumption

4W (5V x 800mA)

Dimension (W x L x H/mm)

69.85 x 100 x 9.5
