Övriga specifikationer

Notes

1. RAID Mode Setting : [J1 : J2] RAID0_2 : 2, RAID1_1 : 2, PM_1 : 1 2. Press tact switch SW1 for reset.

Shock

[email protected]

Function

Disk Array

Warranty

3 Years

Input I/F

SATA III

Vibration

5G@[7~2000Hz]

Model Name

E2SS-32R1

OS Support

--

Output I/F

SATA III

Description

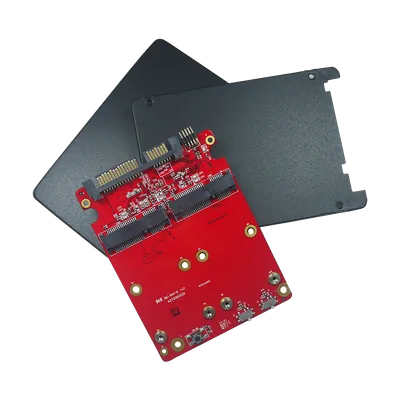

E2SS-32R1 is a SATA to dual SATA III Port Multiplier module that supports H/W RAID 0/1 for enhanced storage performance and reliability.

Form Factor

2.5" SSD

Module Type

2.5” to Dual SATA III RAID Module

Output Port

2

Temperature

Operation : S/T 0° ~ 70°C (Ta) Storage : -55°C ~ 95°C (Ta)

Output Connector

2 x mSATA, 1 x 9-pin Header

Max. Power Consumption

2.45W (5V x 498mA)

Dimension (W x L x H/mm)

69.85 x 100 x 9.5
