ECC

ECC

Hastighet

2133 MHz

Moduler

1

Spänning

1.2 V

Kapacitet

32 GB

Formfaktor

SO-DIMM

Minnestyp

DDR4

Kapacitet per modul

32 GB

Övriga specifikationer

Model Name

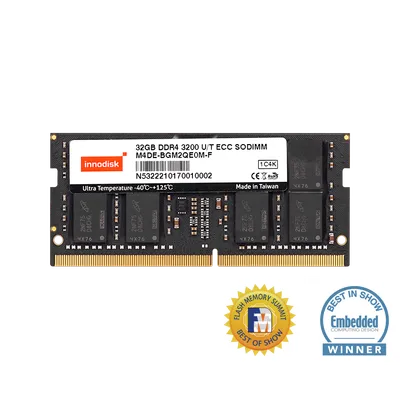

DDR4 Ultra Temperature ECC SODIMM

PCB Height

1.18 Inches

Pin Number

260pin

Description

DDR4 Ultra Temp. ECC SODIMM series are available in 2133MT/s, 2400MT/s 2666MT/s, and 2933MT/s speeds. Its operating temperature range is -40ºC to 125ºC (Tc).

Bending Test

Deflection 1.2 mm, EIAJ-4702

M4D0-8GM1PEEM

1G x 8 1R x 8 -40°C ~ 125°C (Tc) DDR4 3200 8GB Ultra Temperature ECC SODIMM

M4D0-AGM1QEEM

1G x 8 2R x 8 -40°C ~ 125°C (Tc) DDR4 3200 16GB Ultra Temperature ECC SODIMM

M4D0-AGM2PEEM

2G x 8 1R x 8 -40°C ~ 125°C (Tc) DDR4 3200 16GB Ultra Temperature ECC SODIMM

M4D0-BGM2QEEM

2G x 8 2R x 8 -40°C ~ 125°C (Tc) DDR4 3200 32GB Ultra Temperature ECC SODIMM

Anti-Sulfuration

Y

Package Drop Test

Drop Height 76 cm, ISTA-1A

45μ” Gold Finger

Y

Anti-sulfuration Test

480 Hours, ASTM B809-95

Operating Temperature

-40°C ~ 125°C (Tc)

Military Standard Thermal Shock

-40°C ~ 125°C, MIL-STD-810G 503.6

Military Standard Vibration Test

Vibration Frequency 10 Hz ~ 500 HzMIL-STD-810G 514.7

DRAM Module Insert & Extract Test

100 Cycles, EIA-364-9
