ECC

ECC

Hastighet

1066 MHz

Moduler

1

Spänning

1.35 V

Kapacitet

8 GB

Formfaktor

UDIMM

Minnestyp

DDR3

Kapacitet per modul

8 GB

Övriga specifikationer

Model Name

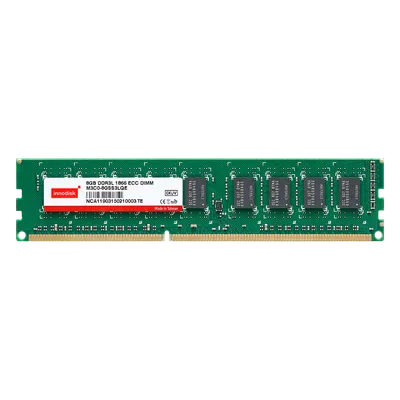

DDR3 ECC UDIMM

PCB Height

1.18 Inches

Pin Number

240pin

Description

DDR3 ECC UDIMM offers 2GB-8GB at 1066MT/s to 1866MT/s with 30μ” Gold Fingers and ECC. Designed for servers and networking, it ensures reliable, lasting performance.

M3C0-2GMJ1CQE

256M x 8 1R x 8 0°C ~ 85°C DDR3 1866 2GB ECC UDIMM

M3C0-2GMJ1LQE

256M x 8 1R x 8 0°C ~ 85°C DDR3L 1866 4GB ECC UDIMM

M3C0-4GMJ3CQE

256M x 8 2R x 8 0°C ~ 85°C DDR3 1866 2GB ECC UDIMM

M3C0-4GMJ3LQE

256M x 8 2R x 8 0°C ~ 85°C DDR3L 1866 4GB ECC UDIMM

M3C0-4GMS1CQE

512M x 8 1R x 8 0°C ~ 85°C DDR3 1866 4GB ECC UDIMM

M3C0-4GMS1LQE

512M x 8 1R x 8 0°C ~ 85°C DDR3L 1866 8GB ECC UDIMM

M3C0-8GMS3CQE

512M x 8 2R x 8 0°C ~ 85°C DDR3 1866 4GB ECC UDIMM

M3C0-8GMS3LQE

512M x 8 2R x 8 0°C ~ 85°C DDR3L 1866 8GB ECC UDIMM

Thermal Shock

-40°C ~ 110°C, 500 Cycles

Package Drop Test

Drop Height 76 cm, ISTA-1A

30μ” Gold Finger

Y

Operating Temperature

0°C ~ 85°C

DRAM Module Insert & Extract Test

100 Cycles, EIA-364-9
