Iiyama

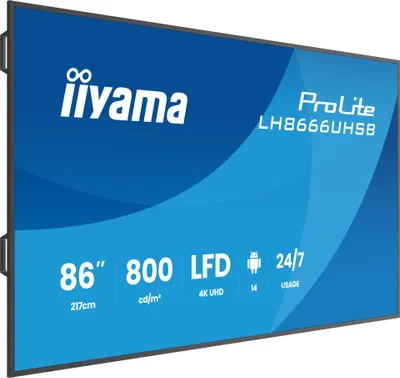

Prolite LH8666UHSB-B1AG

Name: Prolite LH8666UHSB-B1AG
Brand: Iiyama
SKU: LH8666UHSB-B1AG

Art.nr: Prolite-LH8666UHSB-B1AG · P/N: LH8666UHSB-B1AG · EAN: 4948570128280

Specifikationer

Produktsida

Paneltyp: IPS
Ljusstyrka: 800 cd/m²
Upplösning: 3840 x 2160
Skärmstorlek: 86 tum
Bildformat: 16:9
Orientering: Landscape, Portrait
Uppdateringsfrekvens: 60 Hz
Responstid: 8 ms
Skärmglas: Anti-Glare
Kontrastförhållande: 1200:1
Operativsystem: Android 14
Drifttid per dygn: 24 hours

Övriga specifikationer

MTBF: 30000 hours
WiFi: yes (Wifi 5 @ 2.4G/5G)
Other: Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
Cables: power (1.8m), HDMI (1.8m)
Design: Thin bezel
Diagonal: 86", 217cm
EAN code: 4948570128280
USB ports: x2
Pixel pitch: 0.164 x 0.493mm
Power usage: 172W typical, 0.5W stand by, 0.3W off mode
Regulations: CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Audio output: Mini jack x1 | Speakers 2 x 16W

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

AC 100 - 240V, 50/60Hz

Viewing zone

horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

OSD languages

EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB

User controls

network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)

VESA mounting

800 x 600mm

Colour support

1.07G (8 Bits+FRC)

Remote control

yes (batteries included)

Control buttons

Power Indicator, Power button, Remote Sensor

Horizontal Sync

28 - 160kHz

Housing (bezel)

metal

Static contrast

1200:1

Power supply unit

internal

Weight (with box)

58.3kg

Viewable area W x H

1895 x 1066mm

Digital signal input

HDMI x2 (v.2.0, max. 3840x2160 @60Hz) | USB-C x1 (DP Alt, 15W PD)

Weight (without box)

47.6kg

Monitor control input

RS-232c x1 | RJ45 (LAN) x1 | IR x1

Monitor control output

RS-232c x2 (2.5mm) | IR loop through x1

Bezel colour and finish

black, matte

Box dimensions W x H x D

2095 x 1220 x 185mm

Storage temperature range

- 20°C - 60°C

Water and dust protection

IP5X (front)

Operation temperature range

0°C - 40°C

Product dimensions W x H x D

1934.0 x 1104.0 x 76.1mm

Bezel width (sides, top, bottom)

12.8mm, 12.8mm, 12.8mm

Energy efficiency class (Regulation (EU) 2017/1369)
