Gigabyte

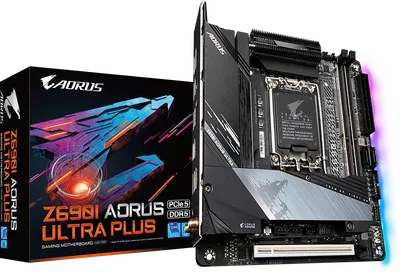

Z690I AORUS ULTRA PLUS (Rev. 1.0)

Name: Z690I AORUS ULTRA PLUS (Rev. 1.0)
Brand: Gigabyte

Art.nr: Z690I-AORUS-ULTRA-PLUS-rev-10

Specifikationer

Produktsida

WiFi: WiFi 6
Sockel: LGA 1700
Chipset: Intel Z690 Express Chipset
M.2-platser: 1
Ethernet: 2.5 Gigabit
Max minne: 128 GB
PCIe-platser: 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slots conform to PCI Express 5.0 standard.)
SATA-portar: 2
Ljudkodek: Realtek ALC4080
Dimensioner: 170 170 mm
Formfaktor: Mini-ITX
Minnestyp: DDR5
Minnesplatser: 2
Displayutgångar: Integrated Graphics Processor-Intel HD Graphics support:
Max minneshastighet: 4000 MHz

Övriga specifikationer

USB: Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the USB headers on the front of GC-Z690I BTB PLUG
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/O kontroller: iTE I/O Controller Chip
Operativsystem: Support for Windows 11 64-bit Support for Windows 10 64-bit
Unika funktioner: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Hårdvaru visning: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
Bundlad programvara: Norton Internet Security (OEM version) LAN bandwidth management software
Interna I/O kontakter

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x external power connector(Note 1) 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1)) 1 x addressable LED strip header(Note 1) 1 x RGB LED strip header 2 x M.2 Socket 3 connectors(M2A_CPU(Note 2)/M2P_SB(Note 1)) 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header(routed from the adapter card on the rear panel) 1 x speaker header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header(Note 1) 1 x reset button(Note 1) 1 x reset jumper 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. (Note 1) The connector is on the front of GC-Z690I BTB PLUG. (Note 2) The connector is on the back of GC-Z690I BTB PLUG.
