Gigabyte

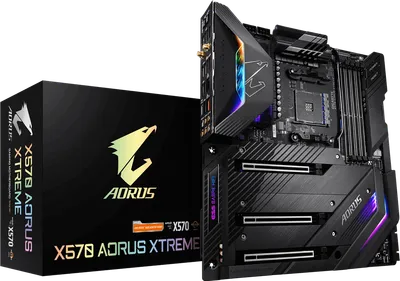

X570 AORUS XTREME (Rev. 2.0)

Name: X570 AORUS XTREME (Rev. 2.0)
Brand: Gigabyte

Art.nr: X570-AORUS-XTREME-rev-20

Specifikationer

Produktsida

WiFi: WiFi 6
Sockel: AM4
Chipset: AMD X570
M.2-platser: 1
Max minne: 128 GB
PCIe-platser: Integrated in the CPU (PCIEX16/PCIEX8): AMD Ryzen 5000 Series*/ 3rd Gen Ryzen Processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) AMD Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ 2nd Gen Ryzen Processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the AMD Ryzen 5000 series processors/3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors/3rd Generation AMD Ryzen with Radeon Graphics processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/1st Generation AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 * Actual support may vary by AMD CPU's specification
SATA-portar: 6
Ljudkodek: Realtek ALC1220
Dimensioner: 305 270 mm
Formfaktor: EATX
Minnestyp: DDR4
Minnesplatser: 4
Max minneshastighet: 2133 MHz

Övriga specifikationer

USB: Integrated in the CPU: 2 x USB 3.2 Gen 2/Gen 1 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Anmärkningar: Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
I/O kontroller: iTE I/O Controller Chip
Operativsystem: Support for Windows 11 64-bit Support for Windows 10 64-bit
Unika funktioner: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Hårdvaru visning

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

Interna I/O kontakter

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
