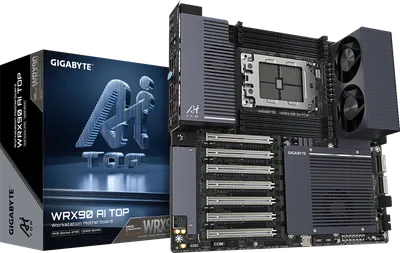

WRX90 AI TOP

Sockel

sTR5

Chipset

AMD WRX90

M.2-platser

2

Ethernet

10 Gigabit

PCIe-platser

6 x PCI Express x16 slots, integrated in the CPU, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2/PCIEX16_3/PCIEX16_4/PCIEX16_5/PCIEX16_7) * The PCIe x16 slots support only graphics cards or NVMe SSDs. For single-card configurations, install the graphics card in the PCIEX16_1 slot. 1 x PCI Express x16 slot, integrated in the CPU, supporting PCIe 5.0 and running at x8 (PCIEX8) 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

SATA-portar

4

Ljudkodek

Realtek ALC1220

Dimensioner

305 330 mm

Formfaktor

EATX

Minnestyp

DDR5

Minnesplatser

8

Displayutgångar

1 x AST2600 D-Sub port 2 x USB4 USB Type-C ports, supporting Type-C and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Supports DisplayPort 1.4 and HDR. ** Graphics output specifications depend on the installed graphics card.

Övriga specifikationer

BMC

1 x microSD card slot (IO_SD_CR1) 1 x PMBus connector (PM_BUS) 2 x LAN LED headers (LAN1_LED/LAN2_LED) 1 x MSG LED header (MSG_LED) 1 X MSG LED (MSG_LED1) 2 x BMC status LEDs (BMC_LED1/BMC_LED3) 1 x IPMB header (BMC_IPMB) 1 x Chassis intrusion header (BMC CSO) 1 x I2C_12 header (I2C_12) 1 x Location LED header (LOCATION) 1 x Location LED (LOC_LED) 1 x VGA switch (VGA_SW) 1 x BMC switch (BMC_SW) 1 x BMC LAN switch (BMC_LAN_SW) 1 x PSU switch (S_PSU_SW) 1 x IPMI switche (IPMI_SW)

USB

CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+ASMedia USB4 controller: 2 x USB4 USB Type-C ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support (internal) 2 x USB 3.2 Gen 2 Type-A ports (red) on back panel 2 x USB 3.2 Gen 1 ports (internal) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports (internal)

BIOS

1 x 256 Mbit flash Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Ubuntu 24.04 LTS Support for Windows 11 64-bit

Unika funktioner

Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for native BMC software functionality Support for AI TOP Utility (Ubuntu)

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Fan or pump speed control depends on the installed fan or pump model.
