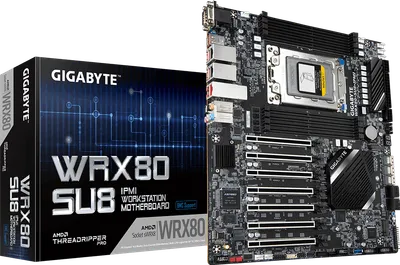

WRX80-SU8-IPMI (Rev. 1.0)

Sockel

sWRX8

Chipset

AMD WRX80 Chipset

M.2-platser

2

Ethernet

10 Gigabit

Max minne

1024 GB

PCIe-platser

(Slot7) PCIe x16 (running at Gen4 x16) (Slot6) PCIe x16 (running at Gen4 x16) (Slot5) PCIe x16 (running at Gen4 x16) (Slot4) PCIe x16 (running at Gen4 x16) (Slot3) PCIe x16 (running at Gen4 x16) (Slot2) PCIe x16 (running at Gen4 x8) (Slot1) PCIe x16 (running at Gen4 x16)

SATA-portar

4

Ljudkodek

Realtek ALC1220

Dimensioner

305 267 mm

Minnestyp

DDR4

Minnesplatser

8

Max minneshastighet

2600 MHz

Övriga specifikationer

USB

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C header onboard, with USB3.2 Gen2 support 2 x USB 3.2 Gen 1 header onboard 1 x USB 3.2 Gen 1 vertical connector onboard 1 x USB 2.0 header on board

Support OS

Windows 10 Linux

I/O kontroller

ASPEED AST2500 BMC chip

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.

Operating Properties

Operating temperature: 10°C to 40°C Operating humidity: 8 - 80% Non-operating temperature: -40°C to 70°C Non-operating humidity: 5% - 95%

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V CPU power connector 1 x 8-pin ATX 12V GPU power connector 1 x CPU fan header 6 x system fan headers 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 3 x slimSAS connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 vertical connector 2 x USB 3.2 Gen 1 header 1 x USB 2.0 header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper 2 x SATA SGPIO headers 1 x BMC_VGA jumper 1 x BMC_WATCHD jumper 1 x SMB_IPMB connector 1 x PMBUS header 1 x Speaker

Kontakter på baksidan

1 x D-sub port 1 x serial port 1 x USB 3.2 Gen 2 Type-C port (red) 5 x USB 3.2 Gen 2 Type-A port (red) 2 x GbE RJ-45 ports 2 x 10GbE RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
