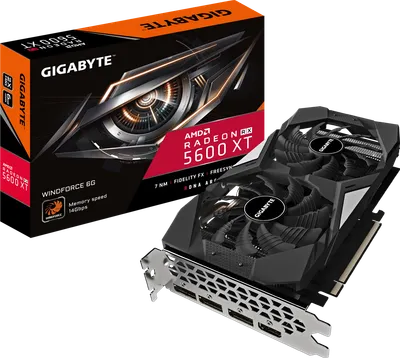

Radeon™ RX 5600 XT WINDFORCE 6G (Rev. 2.0)

TDP

450 W

Bredd

118 mm

Höjd

40.8 mm

Längd

228 mm

OpenGL

4.6

DirectX

12

Minnesbuss

192-bit

Boost-klocka

1560 MHz

Minne

6 GB

Minnestyp

GDDR6

Max antal skärmar

4

Minneshastighet

14000 Gbps

Lanseringsår

2020

Buss

PCIe 4.0 x16

Max upplösning

7680x4320

Displayutgångar

DisplayPort 1.4 *3 HDMI 2.0b *1 ::selection { color: rgba(255, 100, 0, 1); background: rgba(0, 0, 0, .5); } #model-header > ul > li.active > a{ color:#ff6400; } #pnl_version > span > a{ color:#ff6400; }

Strömanslutningar

8 Pin*1

Övriga specifikationer

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

PCB Form

ATX

Accessories

Quick Guide

Stream Processors

2304

Process Technology

7 nm

Graphics Processing

Radeon RX 5600 XT

Memory Bandwidth (GB/sec)

336 GB/s
