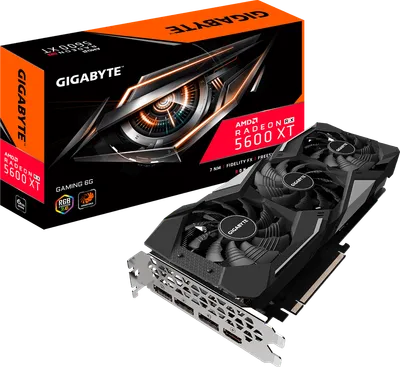

Radeon™ RX 5600 XT GAMING 6G

TDP

450 W

Bredd

114.35 mm

Höjd

49.55 mm

Längd

279.85 mm

OpenGL

4.6

DirectX

12

Minnesbuss

192-bit

Boost-klocka

1560 MHz

Minne

6 GB

Minnestyp

GDDR6

Max antal skärmar

4

Minneshastighet

12000 Gbps

Lanseringsår

2020

Buss

PCIe 4.0 x16

Max upplösning

7680x4320

Displayutgångar

DisplayPort 1.4 *3 HDMI 2.0b *1 ::selection { color: rgba(255, 100, 0, 1); background: rgba(0, 0, 0, .5); } #model-header > ul > li.active > a{ color:#ff6400; } #pnl_version > span > a{ color:#ff6400; }

Strömanslutningar

8 Pin*1

Övriga specifikationer

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. **One-click flash for 14000 MHz memory clock step: 1. Go to the "Support" page in the upper right, then choose the BIOS category. 2. Download the "FA0" BIOS and decompress the zip file. 3. One-click the "GVFLASH.exe", and it will start to flash BIOS to 14000 MHz. 4. Restart your PC.

PCB Form

ATX

Accessories

Quick Guide

Stream Processors

2304

Process Technology

7 nm

Graphics Processing

Radeon RX 5600 XT

Memory Bandwidth (GB/sec)

288 GB/s
