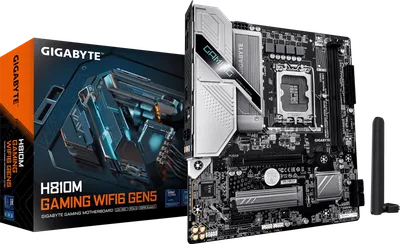

H810M GAMING WIFI6 GEN5

WiFi

WiFi 6

Sockel

LGA 1851

Chipset

Intel H810 Express Chipset

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

SATA-portar

4

Dimensioner

244 215 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)

Max minneshastighet

5600 MHz

Övriga specifikationer

USB

Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

I/O kontroller

iTEI/O Controller Chip

Operativsystem

Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver and Intel 800 Platform Performance Package Installer are only supported on Windows 11.

Unika funktioner

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install

Bundlad programvara

NortonInternet Security (OEM version)

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
