Gigabyte

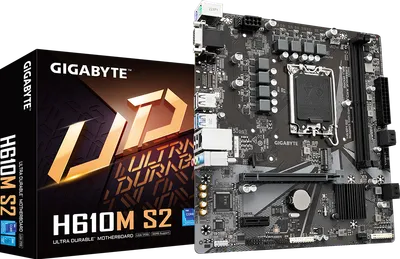

H610M S2 (Rev. 1.0)
Art.nr: H610M-S2-rev-10
Specifikationer
Produktsida- Sockel
- LGA 1700
- Chipset
- Intel H610 Express Chipset
- M.2-platser
- 1
- Ethernet
- 1 Gigabit
- Max minne
- 128 GB
- PCIe-platser
- CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- SATA-portar
- 4
- Dimensioner
- 230 215 mm
- Formfaktor
- Micro ATX
- Minnestyp
- DDR5
- Displayutgångar
- Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz (Graphics specifications may vary depending on CPU support.)
- Max minneshastighet
- 4400 MHz
Övriga specifikationer
- USB
- Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- I/O kontroller
- iTE I/O Controller Chip
- Operativsystem
- Support for Windows 11 64-bit Support for Windows 10 64-bit
- Unika funktioner
- Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
- Hårdvaru visning
- Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
- Bundlad programvara
- Norton Internet Security (OEM version) LAN bandwidth management software * Whether the fan speed control function is supported will depend on the cooler you install.
- Interna I/O kontakter
- 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
