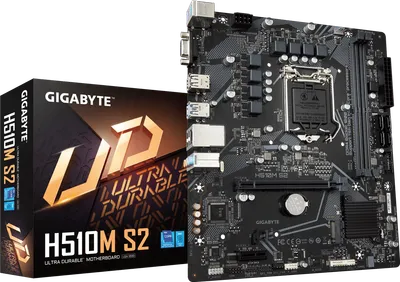

Gigabyte
H510M S2 (Rev. 1.0/1.1/1.2)
Art.nr: H510M-S2-rev-10-11-12
Specifikationer
Produktsida- Sockel
- LGA 1200
- Chipset
- Intel H510 Express Chipset
- M.2-platser
- 1
- Max minne
- 64 GB
- PCIe-platser
- 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
- SATA-portar
- 4
- Dimensioner
- 244 210 mm
- Formfaktor
- Micro ATX
- Minnestyp
- DDR4
- Minnesplatser
- 2
- Displayutgångar
- Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz (Graphics specifications may vary depending on CPU support.)
- Max minneshastighet
- 2133 MHz
Övriga specifikationer
- USB
- Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- I/O kontroller
- iTE I/O Controller Chip
- Operativsystem
- Support for Windows 10 64-bit
- Unika funktioner
- Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
- Hårdvaru visning
- Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
- Bundlad programvara
- Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
- Interna I/O kontakter
- 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
