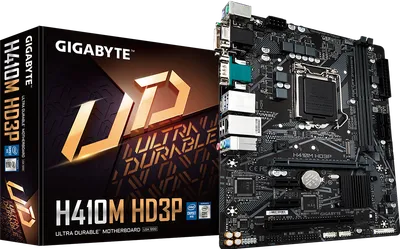

H410M HD3P (Rev. 1.0/1.1)

Sockel

LGA 1200

Chipset

Intel H410 Express Chipset

M.2-platser

1

Max minne

64 GB

PCIe-platser

1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots * The PCIEX1_1 slot shares bandwidth with the PCI slot. The PCI slot will become unavailable when a PCIEX1_1 expansion card is installed. (The PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot Supports up to ASPM L1.2 power management protocols.

SATA-portar

4

Dimensioner

226 185 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB

Max minneshastighet

2133 MHz

Övriga specifikationer

USB

Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)

BIOS

1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Anmärkningar

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 10 64-bit

Unika funktioner

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

Bundlad programvara

Norton Internet Security (OEM version) cFosSpeed
