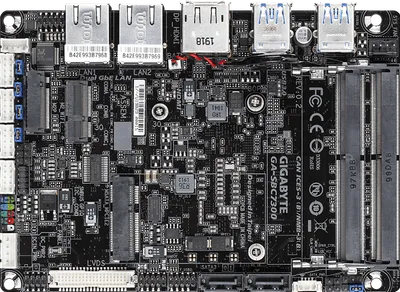

GA-SBC7300 (Rev. 1.0)

M.2-platser

1

Max minne

16 GB

PCIe-platser

1 x M.2 Socket 1 connector for an Wifi module 1 x full size Mini PCIe connector (MSATA_MPCIE) * The MINI_PCIE connector can also be used as an MSATA connector. (The Mini PCIe connector conforms to PCI Express 2.0 standard.)

SATA-portar

2

Ljudkodek

Realtek ALC255

Dimensioner

146 102 mm

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

1 x Display port, supporting a maximum resolution of 3840x2160@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz 1 x LVDS, supporting a maximum resolution of 1920x1200@60 Hz

Max minneshastighet

2133 MHz

Övriga specifikationer

USB

Integrated in the SoC: 4 x USB 3.1 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers

BIOS

1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Anmärkningar

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

I/O kontroller

Nuvoton NCT6116D

Operativsystem

Support for Windows 10 64-bit

Unika funktioner

Support for Xpress Install Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications

Hårdvaru visning

System voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

Bundlad programvara

Norton Internet Security (OEM version)

Interna I/O kontakter
