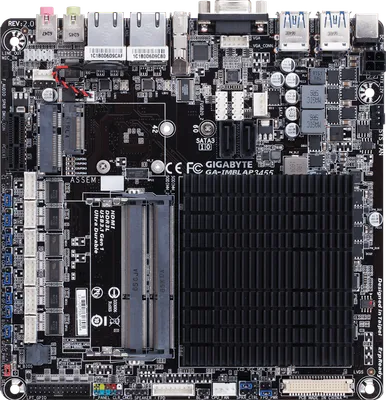

M.2-platser

1

Max minne

16 GB

PCIe-platser

1 x PCI Express x1 slot 1 x Mini PCIe slot (MINI_PCIE) (The PCIe Express x1 and Mini PCIe slots conform to PCI Express 2.0 standard.)

SATA-portar

2

Ljudkodek

Realtek ALC887codec

Dimensioner

170 × 170mm

Formfaktor

Mini-ITX

Minnestyp

DDR3

Minnesplatser

2

Displayutgångar

Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz Maximum shared memory of 512 MB

Max minneshastighet

1600 MHz

Övriga specifikationer

USB

Integrated in the SoC: 4 x USB 3.0 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers

BIOS

2 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Anmärkningar

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 10 64-bit

Unika funktioner

Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection

Bundlad programvara

Norton Internet Security (OEM version)

Interna I/O kontakter

1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x SATA power connector 1 x front panel header 1 x front panel audio header 1 x battery cable header 2 x USB 2.0/1.1 headers 6 x serial port headers 6 x serial port power select jumpers 1 x D-Sub header 1 x LVDS header 1 x LVDS drive voltage jumper (LCD_VCC) 1 x flat panel display header (FPD) 1 x flat panel display power select jumper (FPD_PWR) 1 x flat panel display switch header (MON_SW) 1 x backlight switch header (BL_SW) 1 x digital microphone header (DMIC_CON) 1 x speaker header (SPKR) 1 x buzzer header (SPEAKER) 1 x chassis intrusion jumper 1 x LPT/GPIO header (LPT_GPIO) 1 x LPT configuration jumper (LPT_SEL) 1 x GPIO power selection jumper (GPIO_PWRSEL) 1 x GPIO status configuration jumper (GPIO_SET) 1 x BIOS Select jumper (BIOS_SET) 1 x Clear CMOS jumper 1 x I2C 1 x SMBUS

Kontakter på baksidan

1 x DC-In power connector 1 x HDMI port 1 x D-Sub port 4 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks (Line In, Mic In)
