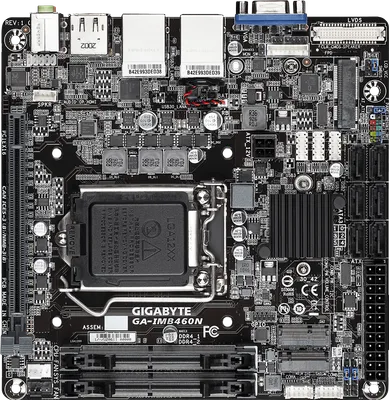

GA-IMB460N (Rev. 1.0)

Sockel

LGA 1200

Chipset

Intel B460 Express Chipset

M.2-platser

1

Max minne

32 GB

PCIe-platser

1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for PCIe wireless module 1 x full size Mini PCIe connector (MSATA_PCIE) * The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an MSATA SSD is populated, the SATA3 2 connector becomes unavailable. * The MSATA_PCIE connector can also be used as an MSATA connector. (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)

SATA-portar

6

Ljudkodek

Realtek ALC887

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. Support for up to 2 displays at the same time Maximum shared memory of 1 GB

Max minneshastighet

2933 MHz

Övriga specifikationer

TPM

Infineon chip, supporting TPM 2.0 (Optional)

USB

Chipset: 4 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports available through the internal USB headers

BIOS

1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Anmärkningar

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

I/O kontroller

ＮuvoTon NCT6116D

Operativsystem

Support for Windows 10 64-bit /Linux

Unika funktioner

Support for @BIOS Support for Q-Flash

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector on the back of the motherboard 6 x SATA 6Gb/s connectors 1 x MSATA connector 1 x USIM connector on the back of the motherboard 1 x front panel header 1 x front panel audio header 1 x battery power cable connector 3 x USB 2.0/1.1 headers 2 x serial port power select jumpers 1 x AT/ATX mode switch jumper (AT_ATX) 1 x GPIO header 1 x LVDS header 1 x LVDS drive voltage jumper (LCD_VCC) 1 x backlight switch header (BL_SW) 1 x flat panel display switch header (MON_SW) 1 x flat panel display header (FPD) 1 x speaker header (SPKR) 1 x buzzer header (SPEAKER) 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x I2C jumper 1 x SMBUS jumper
