Gigabyte

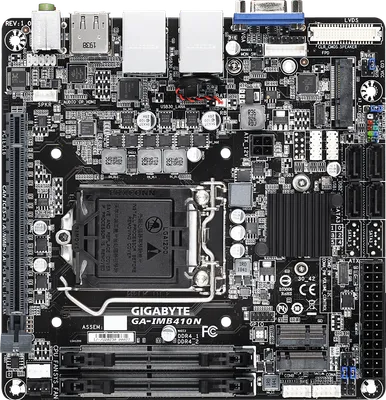

GA-IMB410N (Rev. 1.0)
Art.nr: GA-IMB410N-rev-10
Specifikationer
Produktsida- Sockel
- LGA 1200
- Chipset
- Intel H410 Express Chipset
- M.2-platser
- 1
- Max minne
- 32 GB
- PCIe-platser
- 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for PCIe wireless module 1 x full size Mini PCIe connector (MSATA_PCIE) * The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an MSATA SSD is populated, the SATA3 2 connector becomes unavailable. * The MSATA_PCIE connector can also be used as an MSATA connector. (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)
- SATA-portar
- 4
- Ljudkodek
- Realtek ALC887
- Dimensioner
- 170 170 mm
- Formfaktor
- Mini-ITX
- Minnestyp
- DDR4
- Minnesplatser
- 2
- Displayutgångar
- Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. Support for up to 2 displays at the same time Maximum shared memory of 1 GB
- Max minneshastighet
- 2933 MHz
Övriga specifikationer
- TPM
- Infineon chip, supporting TPM 2.0 (Optional)
- USB
- Chipset: 4 x USB 3.0/2.0 ports on the back panel 2 x USB 2.0/1.1 ports available through the internal USB headers
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Anmärkningar
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
- I/O kontroller
- ＮuvoTon NCT6116D
- Operativsystem
- Support for Windows 10 64-bit /Linux
- Unika funktioner
- Support for @BIOS Support for Q-Flash
- Hårdvaru visning
- Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
- Bundlad programvara
- Norton Internet Security (OEM version)
