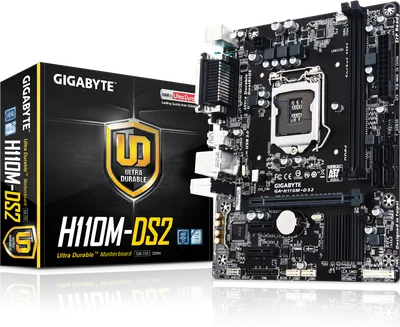

GA-H110M-DS2 (Rev. 1.3)

Sockel

LGA 1151

Chipset

Intel H110 Express Chipset

Max minne

32 GB

PCIe-platser

1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

SATA-portar

4

Dimensioner

226 174 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Maximum shared memory of 1024 MB

Max minneshastighet

2133 MHz

Övriga specifikationer

USB

Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

BIOS

2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Anmärkningar

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Windows 10 64-bit (for 7th Generation Intel Processors) Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors) * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Unika funktioner

Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install

Hårdvaru visning

System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
