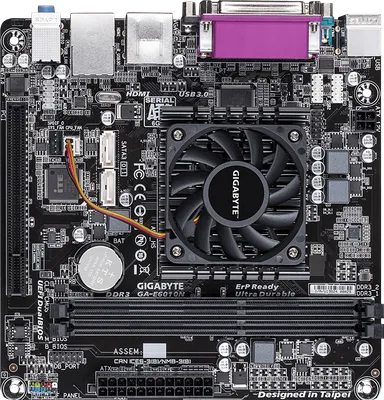

GA-E6010N (Rev. 1.0)

Max minne

32 GB

PCIe-platser

1 x PCI slot

SATA-portar

2

Ljudkodek

Realtek ALC887

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR3

Minnesplatser

2

Displayutgångar

Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096x2160 * Support for HDMI 1.4a version. Maximum shared memory of 2 GB

Max minneshastighet

1066 MHz

Övriga specifikationer

APU

Built in an AMD E1-6010 (1.35 GHz) APU with Radeon R2 graphics SoC * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2MB L2 cache

USB

Integrated in the SoC: 2 x USB 3.1 Gen 1 ports on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

BIOS

2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Anmärkningar

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 10 64-bit Support for Windows 7 64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Unika funktioner

Support for @BIOS Support for Q-Flash Support for Xpress Install

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

Bundlad programvara

Norton Internet Security (OEM version)

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper

Kontakter på baksidan

1 x PS/2 keyboard/mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
