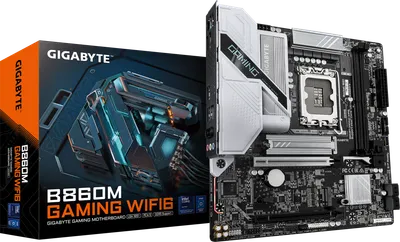

B860M GAMING WIFI6

WiFi

WiFi 6

Sockel

LGA 1851

Chipset

Intel B860 Express Chipset

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

SATA-portar

4

Dimensioner

244 225 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Övriga specifikationer

USB

Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver and Intel 800 Platform Performance Package Installer are only supported on Windows 11.

Unika funktioner

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Bundlad programvara

Norton Internet Security (OEM version) LAN bandwidth management software * Service discontinued as a result of contract termination by the software provider.

Interna I/O kontakter
