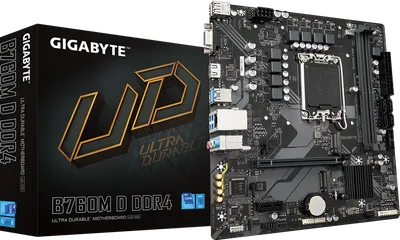

Gigabyte
B760M D DDR4 (Rev. 1.0)
Art.nr: B760M-D-DDR4-rev-10
Specifikationer
Produktsida- Sockel
- LGA 1700
- Chipset
- Intel B760 Express Chipset
- M.2-platser
- 1
- Ethernet
- 1 Gigabit
- Max minne
- 64 GB
- PCIe-platser
- CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- SATA-portar
- 4
- Dimensioner
- 230 215 mm
- Formfaktor
- Micro ATX
- Minnestyp
- DDR4
- Minnesplatser
- 2
- Displayutgångar
- Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
- Max minneshastighet
- 2133 MHz
Övriga specifikationer
- USB
- Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- I/O kontroller
- iTE I/O Controller Chip
- Operativsystem
- Support for Windows 11 64-bit Support for Windows 10 64-bit
- Unika funktioner
- Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash
- Hårdvaru visning
- Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
- Bundlad programvara
- Norton Internet Security (OEM version) LAN bandwidth management software
- Interna I/O kontakter
- 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
