Gigabyte

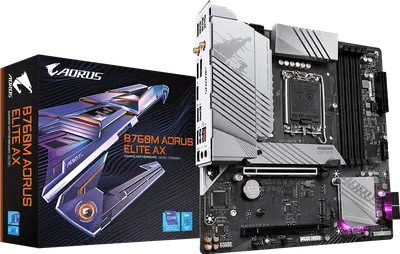

B760M AORUS ELITE AX (Rev. 1.x)
Art.nr: B760M-AORUS-ELITE-AX-rev-1x
Specifikationer
Produktsida- WiFi
- WiFi 6
- Sockel
- LGA 1700
- Chipset
- Intel B760 Express Chipset
- M.2-platser
- 1
- Ethernet
- 2.5 Gigabit
- Max minne
- 256 GB
- PCIe-platser
- CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFireX technology
- SATA-portar
- 4
- Dimensioner
- 244 244 mm
- Formfaktor
- Micro ATX
- Minnestyp
- DDR5
- Minnesplatser
- 4
- Displayutgångar
- Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
- Max minneshastighet
- 4000 MHz
Övriga specifikationer
- USB
- Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen 1 port on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- I/O kontroller
- iTE I/O Controller Chip
- Operativsystem
- Support for Windows 11 64-bit Support for Windows 10 64-bit
- Unika funktioner
- Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
- Hårdvaru visning
- Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
- Bundlad programvara
- Norton Internet Security (OEM version) LAN bandwidth management software
- Interna I/O kontakter
