Gigabyte

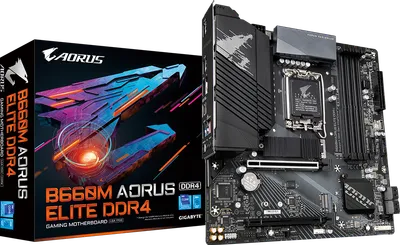

B660M AORUS ELITE DDR4 (Rev. 1.x)
Art.nr: B660M-AORUS-ELITE-DDR4-rev-1x
Specifikationer
Produktsida- Sockel
- LGA 1700
- Chipset
- Intel B660 Express Chipset
- M.2-platser
- 1
- Ethernet
- 2.5 Gigabit
- Max minne
- 128 GB
- PCIe-platser
- 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
- SATA-portar
- 4
- Dimensioner
- 244 244 mm
- Formfaktor
- Micro ATX
- Minnestyp
- DDR4
- Minnesplatser
- 4
- Displayutgångar
- Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
- Max minneshastighet
- 2133 MHz
Övriga specifikationer
- USB
- Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- I/O kontroller
- iTE I/O Controller Chip
- Operativsystem
- Support for Windows 11 64-bit Support for Windows 10 64-bit
- Unika funktioner
- Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- Hårdvaru visning
- Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
- Bundlad programvara
- Norton Internet Security (OEM version) LAN bandwidth management software
- Interna I/O kontakter
