Gigabyte

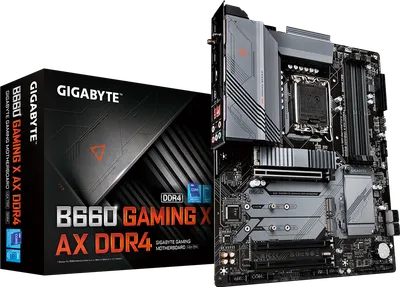

B660 GAMING X AX DDR4 (Rev. 1.0)

Name: B660 GAMING X AX DDR4 (Rev. 1.0)
Brand: Gigabyte

Art.nr: B660-GAMING-X-AX-DDR4-rev-10

Specifikationer

Produktsida

WiFi: WiFi 6
Sockel: LGA 1700
Chipset: Intel B660 Express Chipset
M.2-platser: 1
Ethernet: 2.5 Gigabit
Max minne: 128 GB
PCIe-platser: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.)
SATA-portar: 4
Dimensioner: 305 244 mm
Formfaktor: ATX
Minnestyp: DDR4
Displayutgångar: Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Max minneshastighet: 2133 MHz

Övriga specifikationer

USB: Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/O kontroller: iTE I/O Controller Chip
Operativsystem: Support for Windows 11 64-bit Support for Windows 10 64-bit
Unika funktioner: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Hårdvaru visning: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Bundlad programvara: Norton Internet Security (OEM version) LAN bandwidth management software
Interna I/O kontakter

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
