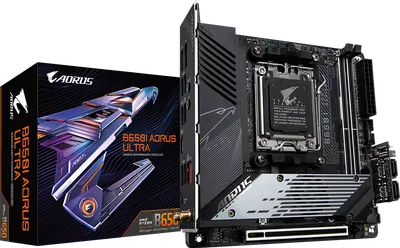

B650I AORUS ULTRA

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD B650

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 7000/9000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

SATA-portar

4

Ljudkodek

Realtek ALC4080

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Integrated Graphics Processor with AMD Radeon Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)

Max minneshastighet

7200 MHz

Övriga specifikationer

USB

CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 11 64-bit Support for Windows 10 64-bit

Unika funktioner

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

Bundlad programvara

Norton Internet Security (OEM version) LAN bandwidth management software

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header (SYS_FAN1(Note 1)) 1 x addressable LED strip header(Note 2) 1 x RGB LED strip header(Note 1) 3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4)) 4 x SATA 6Gb/s connectors(Note 1) 1 x front panel header(Note 1) 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header(Note 2) 1 x reset button(Note 2) 1 x reset jumper 1 x power switch jumper 1 x Clear CMOS jumper (Note 1) The connector is on the front of GC-B650I FRONT CARD. (Note 2) The connector is on the front of GC-B650I BTB PLUG. (Note 3) The connector is on the back of GC-B650I BTB PLUG. (Note 4) The connector is on the back of the motherboard.
