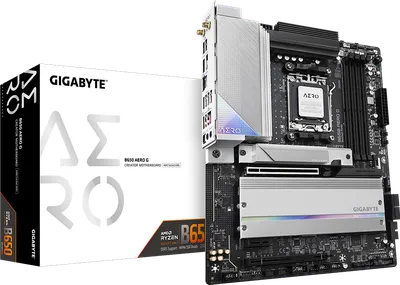

B650 AERO G (Rev. 1.0)

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD B650

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

SATA-portar

4

Övriga specifikationer

USB

CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 11 64-bit Support for Windows 10 64-bit

Unika funktioner

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection

Bundlad programvara

Norton Internet Security (OEM version) LAN bandwidth management software

Interna I/O kontakter
