Gigabyte

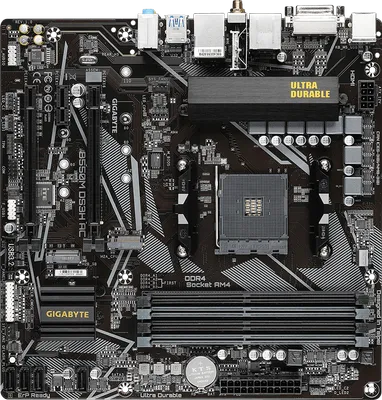

B550M DS3H AC (Rev. 1.0/1.1/1.2/1.3)

Name: B550M DS3H AC (Rev. 1.0/1.1/1.2/1.3)
Brand: Gigabyte

Art.nr: B550M-DS3H-AC-rev-10-11-12-13

Specifikationer

Produktsida

WiFi: WiFi 802
Sockel: AM4
Chipset: AMD B550
M.2-platser: 1
Max minne: 128 GB
PCIe-platser: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series* and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification. AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
SATA-portar: 4
Dimensioner: 244 244 mm
Formfaktor: Micro ATX
Minnestyp: DDR4
Minnesplatser: 4
Displayutgångar: Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Max minneshastighet: 2133 MHz

Övriga specifikationer

USB: CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Anmärkningar: Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
I/O kontroller: iTE I/O Controller Chip
Operativsystem: Support for Windows 11 64-bit Support for Windows 10 64-bit
Unika funktioner: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Hårdvaru visning: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
Bundlad programvara

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
