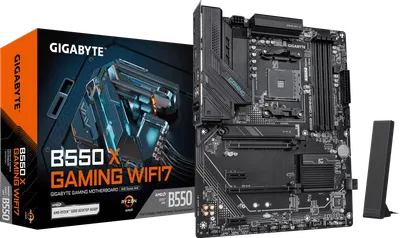

B550 X GAMING WIFI7 (Rev. 1.x)

WiFi

WiFi 7

Sockel

AM4

Chipset

AMD B550

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: -AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode -AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode *For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: -Supporting PCIe 3.0 x4 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode

SATA-portar

4

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Integrated Graphics Processor with AMD Radeon Graphics support: -1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz *Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. -1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB

Max minneshastighet

2133 MHz

Övriga specifikationer

USB

CPU: -1 x USB 3.2 Gen 2 Type-A port (red) on the back panel -3 x USB 3.2 Gen 1 ports on the back panel Chipset: -2 x USB Type-C ports, with USB 3.2 Gen 1 support (1 port on the back panel, 1 port available through the internal USB header) -2 x USB 3.2 Gen 1 ports available through the internal USB header -2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: -4 x USB 2.0/1.1 ports available through the internal USB headers

BIOS

1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 11 64-bit

Unika funktioner

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Bundlad programvara

Norton Internet Security (OEM version)

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
