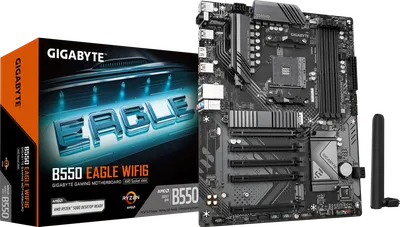

B550 EAGLE WIFI6

WiFi

WiFi 6

Sockel

AM4

Chipset

AMD B550

M.2-platser

1

Ethernet

100 Gigabit

Max minne

128 GB

PCIe-platser

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)

SATA-portar

4

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB

Max minneshastighet

2133 MHz

Övriga specifikationer

USB

CPU: - AMD Ryzen 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel - AMD Ryzen 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel

BIOS

1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 11 64-bit Support for Windows 10 64-bit

Unika funktioner

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.

Bundlad programvara

Norton Internet Security (OEM version) LAN bandwidth management software

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

Kontakter på baksidan

4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks (Note) Actual support may vary by CPU.
