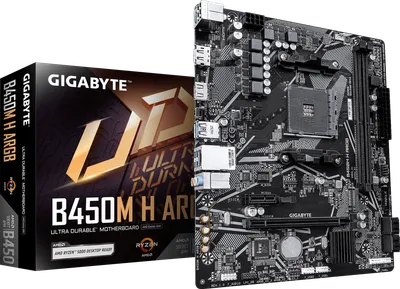

B450M H ARGB

Sockel

AM4

Chipset

AMD B450

M.2-platser

1

Ethernet

1 Gigabit

Max minne

64 GB

PCIe-platser

CPU: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16* Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 *Actual support may vary by CPU.

SATA-portar

4

Dimensioner

233 198 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz *Support for DisplayPort 1.2 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Support for HDMI 2.0b version. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB

Max minneshastighet

2133 MHz

Övriga specifikationer

USB

CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

BIOS

1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

I/O kontroller

iTE I/O Controller Chip

Operativsystem

Support for Windows 11 64-bit Support for Windows 10 64-bit

Unika funktioner

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Hårdvaru visning

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Bundlad programvara

Norton Internet Security (OEM version)

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper
