Gigabyte

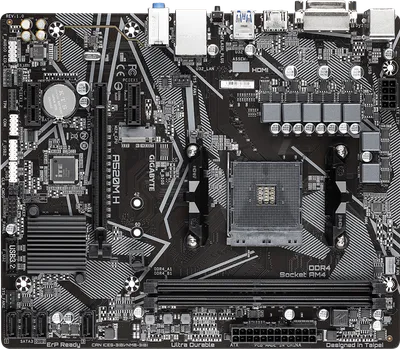

A520M H (Rev. 1.x)

Name: A520M H (Rev. 1.x)
Brand: Gigabyte

Art.nr: A520M-H-rev-1x · EAN: 4719331809683

Specifikationer

Produktsida

Sockel: AM4
Chipset: AMD A520
M.2-platser: 1
Ethernet: 1 Gigabit
Max minne: 64 GB
PCIe-platser: CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0
SATA-portar: 4
Dimensioner: 244 205 mm
Formfaktor: Micro ATX
Minnestyp: DDR4
Minnesplatser: 2
Displayutgångar: Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Max minneshastighet: 2133 MHz

Övriga specifikationer

USB: CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Anmärkningar: Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
I/O kontroller: iTE I/O Controller Chip
Operativsystem: Support for Windows 11 64-bit Support for Windows 10 64-bit
Unika funktioner: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Hårdvaru visning: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
Bundlad programvara: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

Interna I/O kontakter

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
