Specifikationer
Produktsida- Typ
- Fan
- Ljudnivå
- 30.1 dBA
- Fläktstorlek
- 25 mm
- Antal fläktar
- 1
- Fläkthastighet
- 1500 RPM
- Dimensioner
- 140 × 140 × 25 mm
- Lagertyp
- FDB
Övriga specifikationer
- EAN
- 7350041083368
- MTBF
- 150,000 hours
- Size
- 140 x 140 x 25 mm
- Bearing
- FDB
- Other EAN
- 7350041083368
- Cable type
- Braided all-black ribbon wire
- Fan weight
- 210 g
- Noise level
- 30.1 dB (A)
- Cable length
- 500 mm
- Airflow (CFM)
- 78.1
- Fan Connector
- 4-pin
- Airflow (m3/h)
- 132.7
- Package weight
- 210 g
- Fan input power
- 1.4 W
- Static pressure
- 1.94 mm H2O
- Number of blades
- 7
- Package contents
- Venturi Series fan, Screw pack with 4 metal screws, 1->2 PWM signal splitter cable, 4 additional rubber corners, with 105 mm hole pattern
- Rotational speed
- 1500 RPM
- Fan input voltage
- 12 V
- Screw hole pattern
- 125 x 125 mm / 105 x 105 mm
- Low PWM noise level
- < 10 dB (A)
- Specifications MTBF
- 150,000 hours
- Fan starting voltage
- 7 V
- Other Package weight
- 210 g
- Product code (Black)
- FD-FAN-VENT-HP14-PWM-BK
- Product code (White)
- FD-FAN-VENT-HP14-PWM-WT
- Fan max input current
- 0.2 A
- Low (0-20%) PWM speed
- 400 RPM
- Low PWM airflow (CFM)
- 24.0
- Low PWM airflow (m3/h)
- 40.8
- Low PWM static pressure
- 0.54 mm H2O
- Specifications Cable type
- Braided all-black ribbon wire
- Specifications Fan weight
- 210 g
- Other Product code (Black)
- FD-FAN-VENT-HP14-PWM-BK
- Other Product code (White)
- FD-FAN-VENT-HP14-PWM-WT
- Specifications Cable length
- 500 mm
- Specifications Airflow (CFM)
- 78.1
- Specifications Fan Connector
- 4-pin
- Specifications Airflow (m3/h)
- 132.7
- Specifications Fan input power
- 1.4 W
- Specifications Static pressure
- 1.94 mm H2O
- Specifications Number of blades
- 7
- Specifications Fan input voltage
- 12 V
- Specifications Screw hole pattern
- 125 x 125 mm / 105 x 105 mm
- Specifications Low PWM noise level
- < 10 dB (A)
- Specifications Fan starting voltage
- 7 V
- Specifications Fan max input current
- 0.2 A
- Specifications Low (0-20%) PWM speed
- 400 RPM
- Specifications Low PWM airflow (CFM)
- 24.0
- Specifications Low PWM airflow (m3/h)
- 40.8
- Specifications Low PWM static pressure
- 0.54 mm H2O
- Package dimensions (Excluding hanging tab)
- 167 x 142 x 30 mm
- Package dimensions (Including hanging tab)
- 200 x 142 x 30 mm
- Other Package dimensions (Excluding hanging tab)
- 167 x 142 x 30 mm
- Other Package dimensions (Including hanging tab)
- 200 x 142 x 30 mm
Fractal Design

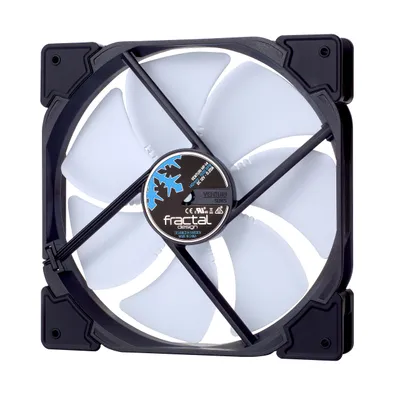

Venturi HP-14 PWM White
Lägst från239 kr
Priser hos återförsäljare
| Butik | Logotyp | Pris | Lager | |
|---|---|---|---|---|
ProshopBäst pris | 239 kr | Köp |
Prishistorik
Den gröna linjen följer dagens lägsta pris genom hela perioden. De senaste 14 dagarna visar även dagens 3 lägsta priser med en grön-till-varm skala för 1:a, 2:a och 3:e billigast den dagen.
