Fractal Design

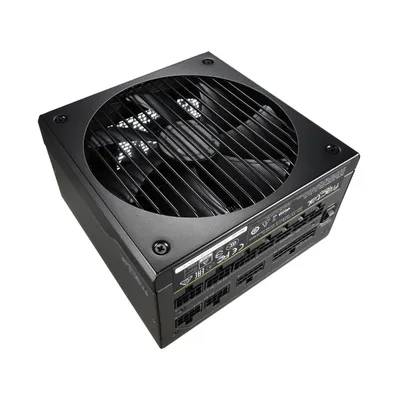

Ion+ 560W Platinum

Name: Ion+ 560W Platinum
Brand: Fractal Design
SKU: FD-PSU-IONP-560P-BK

Art.nr: FD-PSU-IONP-560P-BK · P/N: FD-PSU-IONP-560P-BK · EAN: 7340172701958

Specifikationer

Produktsida

Fläktstorlek: 140 mm
Modulär: Full
Effekt: 560 W
Garanti: 10 years
ATX-version: ATX 2.4
Formfaktor: ATX
Lagertyp: Fluid Dynamic Bearing
Skydd: Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
SATA-kontakter: 6

Övriga specifikationer

5 V: 20A
EAN: 7340172701958
UPC: 843276101954
3.3 V: 20A
Fan type: Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
Warranty: 10 years
Other EAN: 7340172701958
Other UPC: 843276101954
Cable type: Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire
Capacitors: Japanese
Total Power: 560W
EPS12V 8-pin: N/A
Product code

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

Input current

10A/5A

Input voltage

100-240V AC

DC output 12 V

46.6A

Modular cables

Fully modular

Package weight

2.6 kg

DC output -12 V

0.3A

Input frequency

50-60 Hz

Package content

Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual

Unit measurements

150 x 150 x 86 mm

Other Product code

FD-PSU-IONP-560P-BK

Standby efficiency

ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)

Number of 12V rails

Protection features

Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection

5 V Standby (+5 Vsb)

Other Package weight

2.6 kg

Connectors ATX 24-pin

Connectors Peripheral

Other Package content

Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual

3.3 V and 5 V combined

110W

Semi-passive operation

Yes, user selectable (Zero RPM)

Sleep State Compliance

C6/C7

80 PLUS® Certification

Platinum

Connectors PCIe 6+2 pin

Unit weight (unit only)

1.61 kg

Specifications Cable type

Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire

Specifications Capacitors

Japanese

Approvals & Certifications

CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE

PSU specification compliance

ATX12V 2.4 / EPS12V 2.92

Specifications Input current

10A/5A

Specifications Input voltage

100-240V AC

ATX12V 4+4 pin / EPS12V 8-pin

DC output 5 V Standby (+5 Vsb)

Package dimensions (W x H x D)

325 x 110 x 210 mm

Specifications Input frequency

50-60 Hz

DC output 3.3 V and 5 V combined

110W

Specifications Unit measurements

150 x 150 x 86 mm

Specifications Standby efficiency

ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)

Specifications Number of 12V rails

Other Package dimensions (W x H x D)

325 x 110 x 210 mm

Specifications Semi-passive operation

Yes, user selectable (Zero RPM)

Specifications Sleep State Compliance

C6/C7

Specifications 80 PLUS® Certification

Platinum

Specifications Unit weight (unit only)

1.61 kg

Connectors ATX12V 4+4 pin / EPS12V 8-pin

Life expectancy (MTBF) at max output load

100,000 hours

Specifications Approvals & Certifications

CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE

Maximum operating temperature at full load

50° C

Cable configuration (length between connectors) SATA

400+120+120+120, 650+120

Specifications Life expectancy (MTBF) at max output load

100,000 hours

Specifications Maximum operating temperature at full load

50° C

Cable configuration (length between connectors) ATX 24-pin

600

Cable configuration (length between connectors) Peripheral

400+120+120+120

Cable configuration (length between connectors) EPS12V 8-pin

N/A

Cable configuration (length between connectors) PCIe 6+2 pin

550+120 mm x2

Cable configuration (length between connectors) ATX12V 4+4 pin

700
