Övriga specifikationer

Series

Others

Weight

0.81 kg

Summary

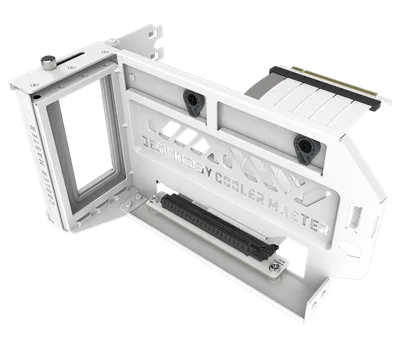

Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.

Color(s)

Vit

Warranty

2 years

Connectors

PCIe x16 Male to PCIe x16 90° Female

Category key

datortillbehor

Model Number

MCA-U000R-WFVK03

Category path

global/catalog/pc-cases/pc-cases-accessories/

Compatibility

PCIe 4.0 and older

Shopify handle

vertical-graphics-card-holder-kit-v3

Storyblok slug

vertical-gpu-holder-kit-v3

Masteraccessory

Case Accessory

Other Materials

ABS, PP, SGCC Steel, Nickel, Gold, Brass

Riser Cable Model

Riser Cable PCIe 4.0 x16

Required PCI slots

Minimum 4 PCI slots required for mounting

Component Materials

PCBA, Silver Plated Copper Wire 30 AWG

Insulation Materials

PE, TPE

Operating Temperature

-20° to +100° Celsius

PCB / Wire UL Numbers

E1895721 / E252840

Dimensions (L x W x H)

GFX Holder Kit: 249 x 148.1 x 141.8mm (close size), GFX Holder Kit: 305 x 178.1 x 141.8mm (open size), Riser Cable: 165mm (6.19in)

Supported Chassis Type

E-ATX, ATX, Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.)

CE Certifications Number

BKC210933AC

Supported Graphics Cards

Any length, up to 3 slots wide

Rated Working Voltage and Current

DC 12V / 5A
