Specifikationer
Produktsida- Fläktstorlek
- 92 mm
- Modulär
- Full
- Effekt
- 1100 W
- ATX-version
- SFX 12V Ver. 3.42 | ATX 3.0
- Dimensioner
- 100 × 125 × 63.5 mm
- Effektivitet
- 80+ Platinum
- Formfaktor
- SFX
- Skydd
- OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- EPS-kontakter
- 2
- SATA-kontakter
- 8
- PCIe 8-pin-kontakter
- 3
Övriga specifikationer
- PFC
- Active PFC
- MTBF
- >100,000 Hours
- Model
- MPZ-B001-SFAP-B**
- Watts
- 1100W
- Series
- V SFX Series
- Modular
- Fully Modular
- Summary
- • High power density • ATX 3.0 support & a 90-degree 12VHPWR cable • Advanced thermal performance • 80 Plus Platinum efficiency • Fully modular cabling • 10-year warranty
- Category
- Above 750W
- Fan Size
- 92mm
- Subtitle
- An SFX Revolution
- Efficiency
- ≥ 92% @ Typical Load
- Regulatory
- TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
- ATX Version
- SFX 12V Ver. 3.42 | ATX 3.0
- Fan Bearing
- FDB
- Form Factor
- SFX
- Protections
- OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Category key
- natdel
- Hold Up Time
- ≥16ms at 70% Load
- Category path
- global/catalog/power-supplies/v-sfx-series/
- Input Current
- 14-6.5A
- Input Voltage
- 100-240V
- 80 PLUS Rating
- 80 PLUS Platinum
- ErP 2014 Lot 3
- Yes
- Shopify handle
- v-sfx-platinum-1100
- Storyblok slug
- v-sfx-platinum-1100
- Input Frequency
- 50-60Hz
- SATA Connectors
- 8
- 12VHPWR Connector
- 1
- Power Good Signal
- 100 - 150 ms
- 80 Plus Efficiency
- Platinum
- EPS 8 Pin Connector
- 1
- Input Voltage Range
- Full Range
- ATX 24 Pin Connectors
- 1
- Operating Temperature
- 0-50°C
- Dimensions (L x W x H)
- 100 x 125 x 63.5 mm
- EPS 4+4 Pin Connectors
- 1
- PCI-e 6+2 Pin Connectors
- 3
- Peripheral 4 Pin Connectors
- 4
Cooler Master

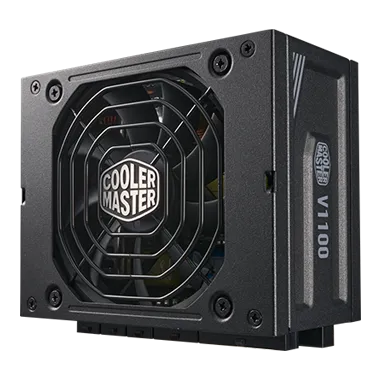

V SFX Platinum 1100
Art.nr: MPZ-B001-SFAP-B
