Specifikationer
Produktsida- Fläktstorlek
- 92 mm
- Modulär
- Full
- Effekt
- 850 W
- ATX-version
- SFX 12V Ver. 3.42 | ATX 3.0
- Dimensioner
- 100 × 125 × 63.5 mm
- Effektivitet
- 80+ Gold
- Formfaktor
- SFX
- Skydd
- OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- EPS-kontakter
- 2
- SATA-kontakter
- 8
- PCIe 8-pin-kontakter
- 4
Övriga specifikationer
- PFC
- Active PFC
- MTBF
- >100,000 Hours
- Model
- MPY-8501-SFHAGV-3**
- Watts
- 850W
- Series
- V SFX Series
- Modular
- Fully Modular
- Summary
- • Flexible compatibility • ATX 3.0 support & a 90-degree 12VHPWR cable • 80 PLUS Gold certified • Fully modular cabling • High-quality Japanese capacitors • 10-year Warranty
- Category
- Above 750W
- Fan Size
- 92mm
- Subtitle
- Small But Mighty
- ETA Rating
- Gold
- Efficiency
- 90% @ Typical Load
- Regulatory
- TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
- ATX Version
- SFX 12V Ver. 3.42 | ATX 3.0
- Fan Bearing
- FDB
- Form Factor
- SFX
- Protections
- OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Category key
- natdel
- Hold Up Time
- 16ms
- Category path
- global/catalog/power-supplies/v-sfx-series/
- Input Current
- 12-6A
- Input Voltage
- 100-240V
- LAMBDA Rating
- Standard+
- 80 PLUS Rating
- 80 PLUS Gold
- ErP 2014 Lot 3
- Yes
- Shopify handle
- v850-sfx-gold-atx-30
- Storyblok slug
- v-sfx-gold-850-atx-3
- Input Frequency
- 50-60Hz
- SATA Connectors
- 8
- 12VHPWR Connector
- 1
- Power Good Signal
- 100 - 500 ms
- 80 Plus Efficiency
- Gold
- EPS 8 Pin Connector
- 1
- ATX 24 Pin Connectors
- 1
- Operating Temperature
- 0-50°C
- Dimensions (L x W x H)
- 100 x 125 x 63.5 mm
- EPS 4+4 Pin Connectors
- 1
- PCI-e 6+2 Pin Connectors
- 4
- Peripheral 4 Pin Connectors
- 4
Cooler Master

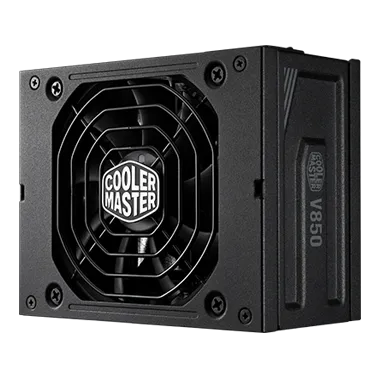

V SFX Gold 850 ATX 3.0
Art.nr: MPY-8501-SFHAGV-3
Priser hos återförsäljare
| Butik | Logotyp | Pris | Lager | |
|---|---|---|---|---|
| Inga aktuella priser tillgängliga. | ||||
