Övriga specifikationer

Size

ATX

Volume

48L

Summary

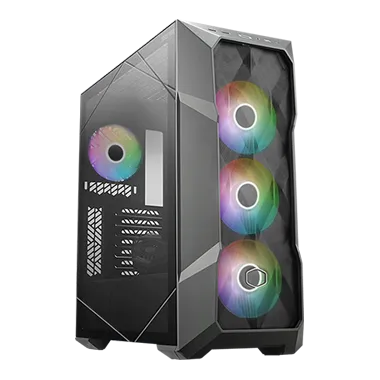

Cooler Master presents the TD500 MAX, the next revolutionary step in our MAX line up.

Subtitle

The First ATX 'MAX', Easy Premium Builds

Warranty

2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)

Category key

datortillbehor

Dust Filters

Top, Bottom

Category path

global/catalog/max/atx/

Exterior Color

Gun metal

Product Number

TD500V2-MGNN85-SL0 / TD500V2-MGNN85-SL1

Shopify handle

td500-max

Storyblok slug

td500-max

Expansion Slots

7

Fan Support - Top

3 x 120mm / 2 x 140mm

Fan Support - Rear

1 x 120mm

Fan Support - Front

3 x 120mm / 2 x 140mm

Motherboard Support

Mini-ITX, Micro-ATX, ATX

Included Accessories

ARGB Hub

Materials - Exterior

Steel, Plastic, Tempered Glass

Drive Bays - 2.5" SSD

3

Drive Bays - 3.5" HDD

2

I/O Panel - USB Ports

2x USB 3.2 Gen 1 + 1x USB 3.2 Gen 2x2 type C

Dimensions (L x W x H)

499 x 210 x 500mm (incl. Protrusions) | 482 x 210 x 477mm (excl. Protrusions)

Drive Bays - 5.25" ODD

0

Pre-installed Radiator

ML360 Atmos MAX ver.

Radiator Support - Top

360mm / 240mm

Clearances - CPU Cooler

165mm

Radiator Support - Rear

120mm

Radiator Support - Front

360mm / 240mm

Clearances - Power Supply

200mm (Pre-installed PSU Length 160mm)

Clearances - Graphics Card

380mm (with pre-installed AIO on front)

I/O Panel - Audio In / Out

1x Audio combo

Pre-installed Fan(s) - Top

N/A

Materials - Left Side Panel

Tempered Glass

Pre-installed Fan(s) - Rear

1 x CF120 ARGB fan

Pre-installed Fan(s) - Front

3 x 120mm (AIO Mobius120P ARGB fan)

Cable Routing - Behind MB Tray

19mm
