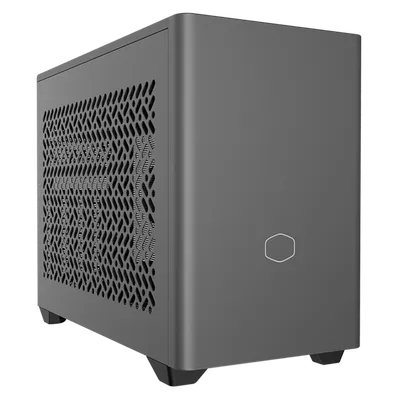

NR200P MAX V2

Övriga specifikationer

Size

Mini ITX

Volume

18.25L

Summary

Comprehensive support for the latest GPUs Increase ventilation with New side panel Preinstalled ATX 3.0 PSU with 12VHPWR cable Featured a USB typeC port

Subtitle

Acquire the Premium ITX Effortlessly

Warranty

2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)

Category key

datortillbehor

Dust Filters

Bottom, Left, Right, Top Panels

Category path

global/catalog/max/mini-itx/

Exterior Color

Grey

Product Number

NR200PV2-MCNN85-SL0, NR200PV2-MCNN85-SL1

Shopify handle

nr200p-max-v2

Storyblok slug

nr200p-max-v2

Expansion Slots

3

Fan Support - Top

2 x 120mm / 2 x 140mm

Motherboard Support

Mini-ITX, Max. size: 170 x 180mm

Fan Support - Bottom

2 x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)

Included Accessories

1x PCIe 4.0 x16 Riser Cable, 1x GPU Holder

Materials - Exterior

SGCC Steel, Mesh, ABS Plastic

Power Supply Support

SFX, SFX-L

Drive Bays - 2.5" SSD

1 (Max. 2)

Drive Bays - 3.5" HDD

1 (Max. 2, remove bottom fan)

I/O Panel - USB Ports

2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen2x2 Type C

Dimensions (L x W x H)

377 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)

Drive Bays - 5.25" ODD

0

Radiator Support - Top

120 / 140 / 240 / 280mm

Clearances - CPU Cooler

67mm

Clearances - Power Supply

130mm

Clearances - Graphics Card

Exceed front bracket: L: 357.6mm (incl. power connector), H: 160mm (incl. power connector), W: 73mm (triple slot) | Not exceed front bracket: L: 334mm (incl. power connector), H: 160mm (incl. power connector), W: 80mm (triple slot)

I/O Panel - Audio In / Out

1x 3.5mm Headset Jack (Audio + Mic)

Included Power Supply Unit

V SFX Gold 850W ATX 3.0

Materials - Left Side Panel

Tempered Glass x1, Steel x1

Included CPU Cooling Solution

2x 140mm SickleFlow PWM, 280mm Radiator, Gen 3 Cooler Master Pump / CPU Block

Drive Bays - 3.5" / 2.5" Combo

1
