Övriga specifikationer

Size

Mini ITX

Volume

15.80L (Normal mode) | 17.54L (Expansion mode)

Summary

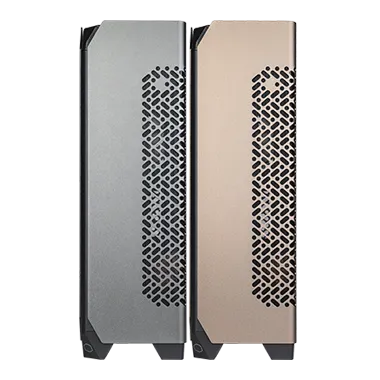

Cooler Master's NCORE 100 MAX is the ultimate solution for going big on performance in the minimal amount of desktop space

Subtitle

Max Performance, Minimalist Design

Warranty

2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)

I/O Panel

2x USB 3.2 Gen1 Type A | 1x USB 3.2 Gen2 x 2 Type C | 1x Audio Combo (Audio In / Out 3.5mm)

Category key

datortillbehor

Dust Filters

Side panels

Category path

global/catalog/max/mini-itx/

Exterior Color

NCORE 100 MAX: Dark grey | NCORE 100 MAX Bronze Edition: Bronze

Product Number

NCORE 100 MAX: NR100-MNNN85-SL0, NR100-MNNN85-SL1 | NCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0, NR100-ZNNN85-SL1

Shopify handle

ncore-100-max

Storyblok slug

ncore-100-max

Expansion Slots

3x PCIe Slot Mounting

Clearances - RAM

48mm

Motherboard Support

ITX

Materials - Exterior

Steel, Plastic, Aluminum

Power Supply Support

SFX

Drive Bays - 2.5" SSD

1

Dimensions (L x W x H)

Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions) | Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions) | 155mm x 212mm x 457mm (Excl. Protrusions) | 172mm x 212mm x 457mm (Excl. Protrusions)

Materials - Side Panel

Aluminum

Clearances - CPU Cooler

48mm

Clearances - Power Supply

100mm

Pre-Installed Accessories

1x 240mm PCIe 4.0 x16

Clearances - Graphics Card

337mm x 62mm x 180mm (Normal, 3.0 Slot thick) | 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick) | (Maximum space including GPU power connector)

Pre-installed Fan(s) - Rear

120mm SickleFlow PWM Fan x1 (Max. 1800RPM)

Cable Routing - Behind MB Tray

11mm

Pre-installed Power Supply Unit

V SFX Gold 850W ATX 3.0

Pre-Installed CPU Cooling Solution

120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
