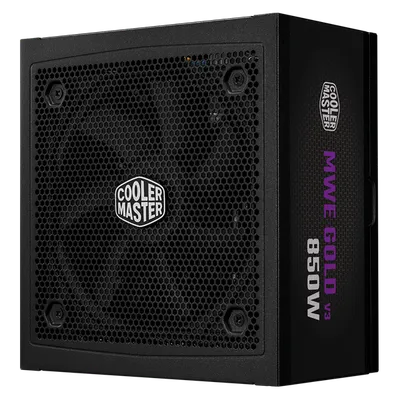

MWE Gold 850 V3 ATX 3.1 | PrisHunden
Hem Nätaggregat Datordelar Cooler Master
MWE Gold 850 V3 ATX 3.1 Art.nr: MPX-8503-AFAG-2
Fläktstorlek 120 mm
Modulär Full
Effekt 850 W
ATX-version ATX 12V Ver. 3.1
Dimensioner 160
150
86 mm
Effektivitet 80+ Gold
Formfaktor ATX
Skydd OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
EPS-kontakter 2
SATA-kontakter 6
12VHPWR-kontakter 1
PCIe 8-pin-kontakter 4 Övriga specifikationer
PFC Active PFC
MTBF >100,000 Hours
Model MPX-8503-AFAG-2***
Watts 850W
Series MWE Gold Series
Modular Fully Modular
Summary • ATX 3.1 support & a durable 12V-2x6 cable • 80 Plus Gold certified efficiency • Silent fan performance with a zero-RPM mode • Separated thermal technologies • Fully modular cabling • 10-year warranty
Category Above 750W
Fan Size 120mm
Subtitle BUILT TO LAST
Fan Speed 2500 RPM
Efficiency ≥90% @ Typical Load
Priser hos återförsäljare Butik Logotyp Pris Lager Inga aktuella priser tillgängliga.
Recensioner Laddar recensioner…
Regulatory
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
ATX Version ATX 12V Ver. 3.1
Product URL https://www.coolermaster.com/en-global/products/mwe-gold-850-v3-atx-3-1.html
Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
Hold Up Time ≥16ms at 80% Load
Product slug mwe-gold-850-v3-atx-3-1
Category path global/catalog/power-supplies/mwe-series/
80 PLUS Rating 80 PLUS Gold
Shopify handle mwe-gold-v3-850-31
Storyblok slug mwe-gold-850-v3-atx-3-1
Indexed content MWE Gold 850 V3 ATX 3.1 The MWE Gold V3 brings a new standard of durability and efficiency to Cooler Master's lineup of power supply units. This 80 Plus Gold certified unit can achieve Titanium level efficiency at light loads in a 115V test. Remove Product? Certified Efficiency Separated Thermal Technologies Fully Modular Cabling Specifications Downloads Product Sheet - English Edition Product Sheet - Japanese Edition About Us Support Join Us Resource Center
Source page type sfcc-html
Power Good Signal 100 - 150 ms
Operating Temperature 0-40°C
Dimensions (L x W x H) 160 x 150 x 86 mm
PCI-e 6+2 Pin Connectors 4
Peripheral 4 Pin Connectors 2
SATA & Peripheral 4 Pin Connectors 6 (SATA) / 2 (Peripheral)
