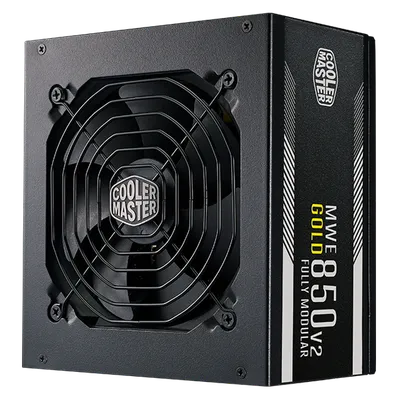

MWE Gold 850 V2 ATX 3.1

Fläktstorlek

120 mm

Modulär

Full

Effekt

850 W

ATX-version

ATX 12V Ver. 3.1

Dimensioner

160 150 86 mm

Effektivitet

80+ Gold

Formfaktor

ATX

Skydd

UVP / OVP / OPP / OTP / SCP / OCP

EPS-kontakter

2

SATA-kontakter

12

12VHPWR-kontakter

1

PCIe 8-pin-kontakter

4

Övriga specifikationer

PFC

Active PFC

MTBF

>100,000 Hours

Model

MPE-8501-AFAAG-3E**

Watts

850W

Series

MWE Gold Series

Modular

Fully Modular

Summary

ATX 3.1 support A 90-degree 12V-2x6 adapter cable High temperature resilience High-quality Japanese capacitors Fully modular cabling 5-year warranty

Category

Above 750W

Fan Size

120mm

Subtitle

Level Up Your Power

Efficiency

≥90% @ Typical Load

Regulatory

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

ATX Version

ATX 12V Ver. 3.1

Fan Bearing

HDB

Form Factor

ATX

Product URL

https://www.coolermaster.com/en-global/products/mwe-gold-850-v2-atx-3-1.html

Protections

UVP / OVP / OPP / OTP / SCP / OCP

Category key

natdel

Hold Up Time

≥ 16ms

Product slug

mwe-gold-850-v2-atx-3-1

Category path

global/catalog/power-supplies/mwe-series/

Input Current

12-6A

Input Voltage

100-240V

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Shopify handle

mwe-gold-850-v2-atx-3-1

Storyblok slug

mwe-gold-850-v2-atx-3-1

Indexed content

MWE Gold 850 V2 ATX 3.1 Commerce Cloud Storefront Reference Architecture Remove Product? High Temperature Resilience​ A 50°C operating temperature and high quality Japanese capacitors allow for pushing your machine to the limits.​ Certified Efficiency The MWE Gold V2 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.​​ Three 8-pin Connectors Up to 600W of power is split between three 8-pin connectors, providing enhanced safety. Fully Modular Cabling Modular cabling reduces clutter, increases airflow, and improves overall thermal performance. Specifications Downloads Product Sheet Manual About Us Support Join Us Resource Center

Input Frequency

50-60Hz

SATA Connectors

12

Source page type

sfcc-html

Power Good Signal

100 - 150 ms

12V-2x6 Connectors

1 (1 to 3)

80 Plus Efficiency

Gold

EPS 8 Pin Connector

1

ATX 24 Pin Connectors

1

Operating Temperature

0-50°C

Dimensions (L x W x H)

160 x 150 x 86 mm

EPS 4+4 Pin Connectors

1

PCI-e 6+2 Pin Connectors

4

Peripheral 4 Pin Connectors

4
