Specifikationer
Produktsida- Fläktstorlek
- 120 mm
- Modulär
- Full
- Effekt
- 850 W
- ATX-version
- ATX 12V Ver. 3.0
- Dimensioner
- 160 × 150 × 86 mm
- Effektivitet
- 80+ Gold
- Formfaktor
- ATX
- Skydd
- UVP / OVP / OPP / OTP / SCP / OCP
- EPS-kontakter
- 2
- SATA-kontakter
- 12
- PCIe 8-pin-kontakter
- 4
Övriga specifikationer
- PFC
- Active PFC
- MTBF
- >100,000 Hours
- Model
- MPE-8501-AFAAG-3
- Watts
- 850W
- Series
- MWE Gold Series
- Modular
- Fully Modular
- Summary
- ATX 3.0 support A 90-degree 12VHPWR adapter cable High temperature resilience High-quality Japanese capacitors Fully modular cabling 5-year warranty
- Category
- Above 750W
- Fan Size
- 120mm
- Subtitle
- Level Up Your Power
- Efficiency
- ≥90% @ Typical Load
- Regulatory
- TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
- ATX Version
- ATX 12V Ver. 3.0
- Fan Bearing
- HDB
- Form Factor
- ATX
- Protections
- UVP / OVP / OPP / OTP / SCP / OCP
- Category key
- natdel
- Hold Up Time
- ≥ 16ms
- Category path
- global/catalog/power-supplies/mwe-series/
- Input Current
- 12-6A
- Input Voltage
- 100-240V
- 80 PLUS Rating
- 80 PLUS Gold
- ErP 2014 Lot 3
- Yes
- Shopify handle
- mwe-gold-v2-850-30
- Storyblok slug
- mwe-gold-850-v2-atx3-ready
- Input Frequency
- 50-60Hz
- SATA Connectors
- 12
- 12VHPWR Connector
- 1 (1 to 3)
- Power Good Signal
- 100 - 150 ms
- 80 Plus Efficiency
- Gold
- EPS 8 Pin Connector
- 1
- ATX 24 Pin Connectors
- 1
- Operating Temperature
- 0-50°C
- Dimensions (L x W x H)
- 160 x 150 x 86 mm
- EPS 4+4 Pin Connectors
- 1
- PCI-e 6+2 Pin Connectors
- 4
- Peripheral 4 Pin Connectors
- 4
Cooler Master

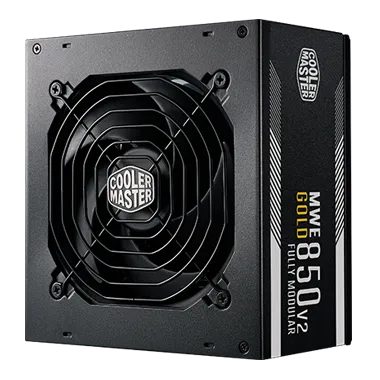

MWE Gold 850 V2 ATX 3.0
Art.nr: MPE-8501-AFAAG-3
Priser hos återförsäljare
| Butik | Logotyp | Pris | Lager | |
|---|---|---|---|---|
| Inga aktuella priser tillgängliga. | ||||
