Fläktstorlek

120 mm

Modulär

Full

Effekt

750 W

ATX-version

ATX 12V Ver. 3.1

Dimensioner

160 × 150 × 86 mm

Effektivitet

80+ Gold

Formfaktor

ATX

Skydd

UVP / OVP / OPP / OTP / SCP / OCP

EPS-kontakter

2

SATA-kontakter

12

12VHPWR-kontakter

1

PCIe 8-pin-kontakter

4

Övriga specifikationer

PFC

Active PFC

MTBF

>100,000 Hours

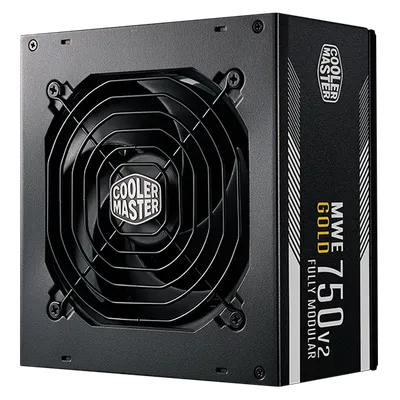

Model

MPE-7501-AFAAG-3E**

Watts

750W

Series

MWE Gold Series

Modular

Fully Modular

Summary

ATX 3.1 support A 90-degree 12V-2x6 adapter cable High temperature resilience High-quality Japanese capacitors Fully modular cabling 5-year warranty

Category

Above 750W

Fan Size

120mm

Subtitle

Level Up Your Power

Efficiency

≥90% @ Typical Load

Regulatory

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

ATX Version

ATX 12V Ver. 3.1

Fan Bearing

HDB

Form Factor

ATX

Protections

UVP / OVP / OPP / OTP / SCP / OCP

Category key

natdel

Hold Up Time

≥ 16ms

Category path

global/catalog/power-supplies/mwe-series/

Input Current

10-5A

Input Voltage

100-240V

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Shopify handle

mwe-gold-750-v2-atx-3-1

Storyblok slug

mwe-gold-750-v2-atx-3-1

Input Frequency

50-60Hz

SATA Connectors

12

Power Good Signal

100 - 150 ms

12V-2x6 Connectors

1 (1 to 3)

80 Plus Efficiency

Gold

EPS 8 Pin Connector

1

ATX 24 Pin Connectors

1

Operating Temperature

0-50°C

Dimensions (L x W x H)

160 x 150 x 86 mm

EPS 4+4 Pin Connectors

1

PCI-e 6+2 Pin Connectors

4

Peripheral 4 Pin Connectors

4
