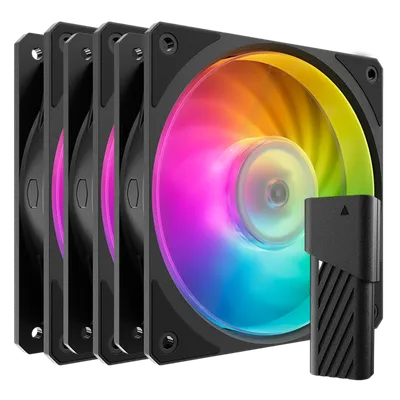

Mobius 120P ARGB 3-pack Fan Kit

RGB

ARGB

Typ

Fan

Ljudnivå

30 dBA

Luftflöde

127.8 m3/h

Fläktstorlek

120 mm

Fläkthastighet

0-2400 RPM ± 10%

Garanti

5 years

Dimensioner

120 120 25 mm / 4.7 4.7 1.0 inch

Statiskt tryck

3.63 mmH2O

Övriga specifikationer

Series

Mobius Series

Profile

Addressable Gen 2 RGB

Summary

Ring Blade Design (RBD) Pressure Air Acceleration Absolute Acoustics Luminescent Light Effects Addressable Gen 2 RGB New Mini A1 controller

Fan MTTF

>200,000 Hours

Fan Size

120

Subtitle

More Balance, More Burst

Warranty

5 years

Fan Speed

0-2400 RPM ± 10%

Fan Weight

179g / 0.38 lbs

Cooler Type

Case Fan

Fan Airflow

75.2 CFM

Product URL

https://www.coolermaster.com/en-global/products/mobius-120p-argb-3-pack-fan-kit.html

Category key

kylning

LED Lighting

ARGB

Product slug

mobius-120p-argb-3-pack-fan-kit

Category path

global/catalog/cooling/case-fans/

Fan Connector

4-Pin PWM

RGB Connector

3-Pin ARGB

Exterior Color

Black

Product Number

MFZ-M2DN-243P2-R1

Shopify handle

mobius-120p-argb-3-pack-fan-kit

Storyblok slug

mobius-120p-argb-3-pack-fan-kit

Fan Noise Level

30 dBA

Indexed content

Mobius 120P ARGB 3-pack Fan Kit Commerce Cloud Storefront Reference Architecture Remove Product? PERFECTING ENGINEERING RING BLADE DESIGN (RBD) LOOP DYNAMIC BEARING New loop dynamic bearing design utilizes thick oil coating and lubrication to allow for stable performance. OIL REFLOW The oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan. ANTI-SWAY SYSTEM Magnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray. DUST PROOFING The sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion. PRESSURE AIR ACCELERATION ABSOLUTE ACOUSTICS Sound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.Acoustic Testing Anechoic Chamber for ISO 3745• FFT analyzer: AD-3524 O Microphone: B&K 2235• Sound Pressure: IS0-7779• Sound Power: ISO-7779• Sound Quality: 1S0-532B /ISO• Background noise: below 6dBA ANTI-VIBRATION DAMPER 10 AWARDS Specifications Downloads Product Sheet Product Sheet - Traditional Chinese Edition Product Sheet - Japanese Edition About Us Support Join Us Resource Center

Fan Air Pressure

3.63 mmH2O

Fan Bearing Type

Loop Dynamic Bearing

Source page type

sfcc-html

Fan Rated Current

0.18A | 0.35A

Fan Rated Voltage

12 VDC

RGB Rated Current

0.48A

RGB Rated Voltage

5 VDC

Fan Power Consumption

2.16W

Dimensions (L x W x H)

120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch
