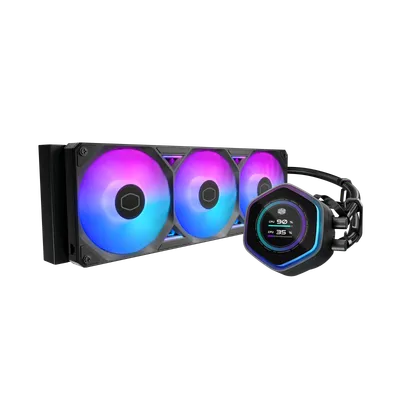

MasterLiquid Atmos II LCD

RGB

ARGB

Typ

Fan

Antal fläktar

1

Fläkthastighet

690 ~ 2500 RPM ± 15%

Material

Aluminum

Pumphastighet

3400 ± 300 RPM

Ljusstyrka

300 cd/m²

Dimensioner

(240) - 277 119.2 27 mm (10.9 4.7 1.1 inch) | (360) 394 119.2 27 mm (15.5 4.7 1.1 inch)

Upplösning

480 x 480

Slanglängd

(240) 350 mm | (360) 400 mm

Bildformat

1:1

Uppdateringsfrekvens

60 Hz

Sockelkompatibilitet

Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 | AMD® AM5 / AM4

Övriga specifikationer

Series

MasterLiquid

Profile

Addressable Gen 2 RGB

Summary

⬢ LCD panel for enhanced personalization ⬢ SickleFlow Edge ARGB fans ⬢ Ultra-low profile pump design ⬢ Quick and easy installation

Fan MTTF

>160,000 Hours

Subtitle

360 DEGREES OF COOL

Warranty

6 years

Fan Speed

690 ~ 2500 RPM ± 15%

Pump MTTF

>210,000 Hours

CPU Socket

Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 | AMD AM5 / AM4

Pump Speed

3400 ± 300 RPM

Cooler Type

Liquid Cooler

Fan Airflow

(240) 240.35 m³/h (141.4 CFM) | (360) 322.8 m³/h (190 CFM)

Product URL

https://www.coolermaster.com/en-global/products/masterliquid-atmos-ii-lcd.html

Tube Length

(240) 350 mm | (360) 400 mm

Category key

datorskarmar

Fan Quantity

1 PC

Product slug

masterliquid-atmos-ii-lcd

Category path

global/catalog/cooling/cpu-liquid-cooling/

Fan Connector

7-Pin PWM + ARGB

LCD Connector

USB Type-C to Motherboard 9 pin

Pump Profiles

Addressable Gen2 RGB

Radiator Size

240 | 360

LCD Dimensions

85 x 79.2 x 18.7 mm (3.4 x 3.1 x 0.7 inch)

Product Number

(240 LCD Black) MLX-D24M-A25SZ-L1, (240 LCD White) MLX-D24M-A25SZ-LW, (360 LCD Black) MLX-D36M-A25SZ-L1, (360 LCD White) MLX-D36M-A25SZ-LW (*SKU may vary by region)

Pump Connector

3-Pin ARGB + 4-Pin PWM

Shopify handle

masterliquid-atmos-ii-lcd

Storyblok slug

masterliquid-atmos-ii-lcd

Fan Noise Level

(240) 36 dB(A) | (360) 38.5 dB(A)

Indexed content

MasterLiquid Atmos II LCD Commerce Cloud Storefront Reference Architecture Remove Product? LCD The LCD panel provides a real-time display, and the MasterCTRL software supports the creation of GIFs, PNGs, JPGs, scrolling text, and the display of your music or video source.​​ Screen Size Resolution Refresh Rate DUAL CHAMBER DESIGN Patented design Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot. Improved Quality Fully automated production and assembly of the pump with fully recorded production history. Tough. Reliable. Built to Endure. Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability-designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70°C for 3,000 hours and 120 °C for 12 hours*, ensuring reliable performance under the harshest conditions.*Tested by Cooler Master Lab using only the liquid cooling module. Results may vary by system and conditions. PRE-INSTALLED SICKLEFLOW EDGE ARGB FAN High RPM fan with low vibration ensure strong cooling with minimal noise, while the dual color options complement different system aesthetics. ULTRA-LOW PROFILE PUMP DESIGN QUICK AND EASY INSTALLATION Offset Mounting Brackets for LGA 1851 Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851*, which precisely dissipate 4°C of heat from the center of the CPU.***Please check whether your motherboard is compatible with this offset bracket.**Tested by Cooler Master Lab. INCLUDED CRYOFUZE THERMAL PASTE TUBE CLIPS INCLUDED Specifications Downloads Product Sheet Product Sheet - Japanese Edition Product Sheet - Traditional Chinese Edition Manual About Us Support Join Us Resource Center

LCD Screen Size

2.1 inches / Diameter 53.3 mm

Pump Dimensions

92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)

Fan Air Pressure

3.61 mmH2O

Fan Bearing Type

Loop Dynamic Bearing

Pump Noise Level

25 dBA (Max)

Source page type

sfcc-html

Fan Rated Current

0.5 A

Fan Rated Voltage

12 VDC

LCD Rated Current

0.3 A

LCD Rated Voltage

5 VDC

Radiator Material

Aluminum

Fan Safety Current

0.8 A

LCD Exterior Color

Black / White

LCD Safety Current

0.5 A

Pump Rated Voltage

12 VDC

Radiator Dimensions

(240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch) | (360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)

LCD Screen Luminance

300 cd/m²

Fan Power Consumption

6 W

LCD Power Consumption

1.5 W

LCD Screen Resolution

480 x 480 px

LCD Screen Orientation

Software-MasterCtrl adjustable

Pump Power Consumption

3.84 W

LCD Screen Refresh Rate

60 Hz

Fan Dimensions (L x W x H)

(240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch) | (360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
